Serpent SER600039-G Serpent Cobra E-Truggy RTR Green  [SER600039-G]

Serpent SER600039-G Serpent Cobra E-Truggy RTR Green
價格:
HKD$2,828.87
牌子:
Serpent
型號:
SER600039-G
物品狀況:
全新
填寫評論
  • Introduction

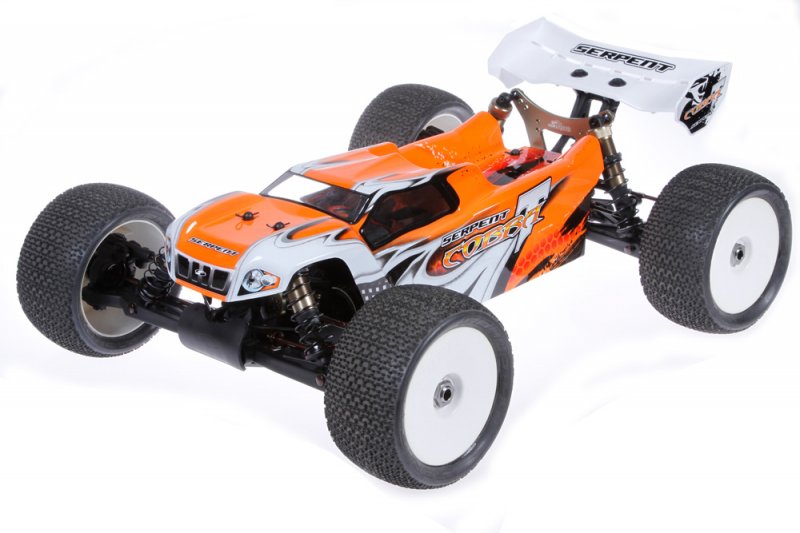

    The Serpent Cobra E-Truggy in RTR trim is an ideal basher kind vehicle that may just take many beating and its also a fantastic package to start out genuine racing ! On the basis of the Cobra E-Truggy this has the outright speed, great management, reliability, rigidness and durability you need.

    The RTR package is actually dialed:
    -factory put together racing chassis
    -prepainted and precut low type truggy human anatomy and big composite rear wing
    -premounted truggy tyres/wheels/inserts
    -pre-set 4S to 6S capable waterproof 150A speedo ( DragonRC)
    -2000kv brushless longbody engine (DragonRC)
    -Digital 2.4ghz transmitter (DragonRC)
    -Metal gear servo 16kg ( DragonRC-Savox)
    -3 oilfilled geardifferentials
    -Big bore shocks with plastic dustboots and machined aluminium shocktowers
    -Spring steel transmission parts and turnbuckles, front and back cvd driveshafts
    -Front and back anti-roll bars
    -Large battery-cases with simple felcron straps
    -Machined aluminium chassisplate
    -Fully ballraced
    -Batteries the car and transmitter are not included

    The bodyshell will come in orange, red, green, blue and red, and a clear type.

    Serpent provides a multitude of optional parts because of this vehicle to improve performance, lighter or for also nicer appearance.

  • Main features

    Car
    Fully expert pre put together and pre-set framework and electronic devices.

    Transmitter
    DragonRc 2.4 GHz steeringwheel type transmitter with lots settings and good range. Comes with little and light receiver.

    Speedo
    DragonRC waterproof speedcontroller with a massive 150A capacity to manage the brushless engine and 4S or 6S battery power

    Motor
    DragonRC longbody 2000kV brushless motor with effortless colorcoded connectors

    Body
    Prepainted and pre-cut low e-Truggy human anatomy, in 4 primary colors orange, red, Green and Blue. ( also clear one available as optional)

    Tyres
    Premounted battle ready tyres / tires with soft substances and pintype profile for amazing grip.

    Chassis
    Very narrow 3mm 7075T6 aluminium framework, with machining on the upper face making it lighter in strategic places and to control flex. Kick-up front side for appropriate landings. Angled side to improve cornering approval, and safe and simple mounting part guards with 5 screws. Countersunk holes, pouches to position the suspension system brackets. In general the Truggy is made to keep carefully the fat extremely central and towards the centerline that you can, generate a great overall stability.

    Side guards / battery pack trays
    Durable shaped composite part guards / battery pack trays that follow the distinct the framework, and mount with 5 screws each part. Front and sides sufficient to keep the dirt away. The guards/trays create a lot of stability. The batteries are installed in longtudinal fashion, maintaining the extra weight low into the car. The battery pack trays features user friendly Serpent noticeable felcron TM straps to secure the batteries in place. Fits 2S and 3S batteries.

    Motormount:
    The engine is positioned in the many optimal place within the vehicle, maintaining motor-forces and transmission parts / positioning in your mind. Just one-screw is necessary to secure the BL engine, in nicely created durable machined aluminium motormount. Room for extra motor-cooling available as needed. The room for the motor enables mounting all popular buggy and (monster)truggy motors.

    Composite framework braces
    Allows the framework to flex which helps enhance bump management. Front and rear.

    Front bumper
    Nicely rounded front bumper, identical to on the Cobra buggy, to protect leading anti-roll club, suspension system brackets, and moves inline with kick-up chassis front side for safe landings.

    Front suspension
    Very long and durable composite reduced wishbones, combined with upper spring-steel trackrods. 2 lower shock-mount jobs. Downstops can be utilized as required. Pivotball type anti-roll club rods.
    .
    Front steering / servo saver / angled
    Innovative angled front steering construction to reduce the angle of distinction between the full total caster and steering airplane. Therefore you'll have less bump steer and a truer steering Ackerman through the complete range of suspension.

    Adjustable spring loaded servo-saver system with interchangeable Ackermann dishes. Using the design of steering bell cranks when changing the Ackerman you will not have to adjust your steering tie rods. You merely will only need to adjust your end points on your radio.. quite simple to gain access to and set-up.

    The Inboard Bell crank keeps the lever and linkage inside the automobile. It'll aid in preventing damage to the steering system. Zero scrub radiuses on steering knuckle, helps reduce the jacking impact developed by your steering knuckle offset. It provides an even more direct fell while maintaining the vehicles chassis more degree while turning.

    The front roll center could be changed quickly by moving the steering knuckle shims to their appropriate locations.

    Topped of with a solid composite top-plate.

    Front steering-block / c-hubs
    Very durable front steeringblock / C-hub installation .

    Drive-shafts
    Long and lightweight springtime metal devices with pressed in metal pins, laser-engraved. Same length front side and rear.

    Wheel-axles / wheel-nut
    Serpent spring metal threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts to keep the huge truggy wheels/tyres on course.

    Captured universal joints
    Guarantees you can expect to finish a race without loosing a pin or set screw. All components, axles and drive train elements have actually capture pins

    Front shocktower
    Light, strong and durable machined 5mm aluminium units with 5 jobs for shockangle.

    Shock-set front and rear
    16mm big bore shocks, with difficult anodized precision threaded shock-bodies. Shockboots in silicone plastic to help keep the dust away . Chromed shock-shafts for supersmooth shockaction . The larger o rings offer less general force and an improved seal without dragging regarding shock shaft.

    Suspension brackets
    The hinge-pins / hingepin balls are captured in durable composite suspension system brackets . These capture the nylon roll-center inserts.

    Anti-roll club / anti-roll club linkage with pivotball
    The anti-roll pubs front and back are made of good quality unique spring metal, as they are captured regarding diff-cased in ballbearing for perfect guidance and control.

    Receiver field / servo mount / speedo mount
    Composite one piece radiobox to firmly mount servo� s, speedo and receiver. For maximum stability the light receiver fits the top-case easy, with a small opening to allow cable to protrude. The speedo seats suprisingly low on a plate right above the framework, so short cables could be used to the motor. The servo is mounted in a vertical fashion.

    Central diff
    Optimised central gear-diff with 50T super-hard spur-gear . Tiny, compact design to cut back rotating mass to your max.

    Transmission shafts
    Durable but light and thin Serpent spring metal, laser etched shafts.

    front side and rear diff
    Optimised gear-diff with superhard spur-gears . Really small, compact design to lessen rotating mass to your maximum. Exact same variation front side and rear. Diff coupler in springtime metal seated in big barings for durability.

    Rear shocktower
    Light, strong and durable machined 5mm aluminum unit with 5 jobs for shockangle.

    Rear uprights
    Durable composite rear uprights with 3 camber positions

    Suspension brackets rear
    Durable composite units with eccentric inserts to alter set-up.

    Rear wing mount
    The composite rear wing mount, allows to alter the angle of this backside wing.

    Rear wing
    Two phase high down force wing, has two levels of angle, which also includes 2 fins. Helps improve down force and straight line capability

    Bodymounts
    Nylon bodymounts with wider seating the human body, securely fastened on shocktowers.

    Super Low profile e-Truck Body
    Improves look including keeps the profile minimum. Comes precut and prepainted.

    Decals
    Applied towards the human anatomy.

    Oils / grease
    Car is assembled with high quality silicone natural oils the diffs and shocks and black colored grease. Threadlock applied in which required.

    Manual
    Full color manual showing the car, specs, guidelines and exploded views. The transmitter and speedo have actually tiny split manuals included.

    Box
    Full color protective package to re-use for vehicle transport or tyres.
