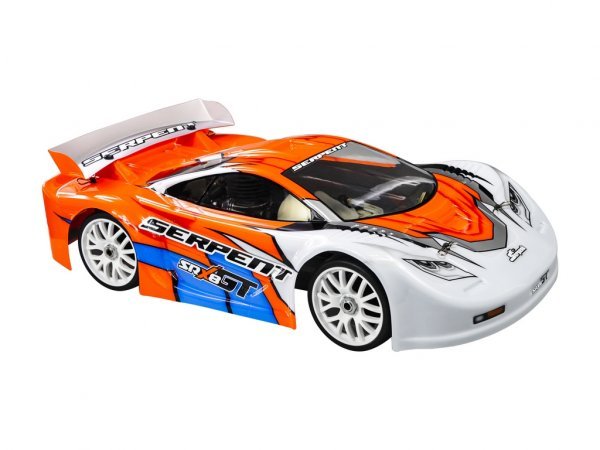

Serpent SER600062 SRX8 GT RTR 4wd 1/8 GP
[
SER600062
]
價格:
HKD$3,317.18
牌子:
Serpent
型號:
SER600062
售罄
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
送出
1
2
3
4
5
填寫評論
產品說明
Chassis dish
Chassis dish in 3mm 6061T6 aluminium. Kick-up angle on front for stabile landings. Countersunk holes. Slots to locate the leading and back suspension mounts exactly. Angled sides to increase stiffness.
Bumper
big foam bumper, which is held set up by a upper and lower nylon bumper plate.
Chassis stiffners
Composite stiffner front and rear, to provide additional stiffness, but nonetheless enable some flex as required.
Radiobox
This radio package design allowed united states to possess some new advancements because of this automobile, which included, as seen above a fresh updated center diff installation and quite simple to regulate braking system. The flush mounted transponder and carbon fiber decals, set this thing aside from any such thing you
Steering blocks assembly
Composite steering blocks combined with 10 degr C-hubs for exact steering. Spring steel wheel-axles with large size bearings and bigger internal with precision threaded aluminum wheel-hubs with offset . Flanged wheel nuts to ensure that you will perhaps not loose a wheel nut in a race.
Front suspension
Durable oversized lower suspension system hands in strong composite nylon. On the reduced side the special shaped downstops screws are installed. The lower shock-mounting pins are guaranteed with a little grubscrew through the bottom.
Front anti-roll club
The front anti-roll club system, consist of a spring steel bend wire, which can be led through the diff-cases and runs in metal adaptors. The wire is from the lower suspension supply, with a captured adjustable threaded pivot ball, for very exact and low friction operation and simple tuning.
Shocktower and bodymounts front
4.0mm thick aluminium anodized shocktower with 3 top placement holes for the shocks and and 4 holes for roll-center jobs. Strong, in height adjustable bodymounts with wide top-section to seat your body well.
Rear suspension hands and uprights
Durable longer oversized reduced suspension arms in strong composite nylon. On the reduced part the special downstops screws are mounted. The low shock-mounting pins are guaranteed with a small grubscrew from base. Composite uprights with 3 upper roll-center positions. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Rough metal wheel-axles with large size bearings and bigger inner ones with accuracy threaded aluminum wheel-hubs with offset. Flanged wheel nuts to guarantee that you will not loose a wheel nut in a race.
Shocktower backside and Bodymount
4mm dense aluminium shocktower, built-into the rear part for additional stiffness, with 4 top positioning holes for the shocks and 4 holes for roll-center jobs.
Polycarbonate rear low aero wing. Central back bodymount with the back bodypost, that are adjustable in height easily .
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted set up making in spring-steel quality. This relieves pressure on the hinge pin when adjusting the kick up, or anti squat. Your pin is absolve to turn to virtually any angle without binding.
Shock absorbers RCM big-bore 16mm / RCM shock springs
Anodized aluminium shock systems with durable 4mm shock-rods. Pre-load adjuster clips for ride height environment. Shocks utilize large diameter membranes and big diameter O-rings and bushings to produce a supersmooth and leak-proof package. Big diameter pistons take place set up by a nut regarding the polished shock-rods tops. Open type spring retainer to let dirt out effortless.
Color-coded progressive competition surprise springs are provided the 1st standard set-up and all sorts of springs are grinded flat top and base, and checked separately for stress and length and are usually matched.
Lightweight gear differentials - 2-speed gearbox
really compact gear differentials with really smooth metal sintered gears, and metal shaft. Perfect sealing instance with special gasket and O-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector running in 2 oversized bearings.
The automatic 2-speed SL8 XLI gearbox with centrifugal footwear. The gearbox comes directly from the Viper 990 on road 1/8 automobile. Gearing 58-63T
Front and rear drive
The front has captured driveshafts making use of a CVD system. The trunk has durable black colored steel driveshafts with difficult steel pins.
Body
Serpent superlow SRX8 GT body, completely pre-painted in a really appealing design and pre-cut too. Ab muscles low body has excellent control and downforce
Tyres / wheels
The Cobra is equipped with premounted DragonRC GT rushing tyres. The tyres are glued on durable but versatile DragonRC race-wheels with cell-foam inserts. A super-package for excellent grip on most typical surfaces
Transmitter and receiver
The DragonRC DTS-3 2.4GHZ pistol type transmitter
the tiny and light receiver is equipped in the radiobox for the car.
Engine
The Serpent S21 pull start motor for SRX8 GT has a outstanding quality level, powerful, coupled with easy launching and long lasting runtime, makes this motor the best partner to start out racing. The engine is mounted firmly on machined aluminium motor mounts.
Oils and grease
Top-quality silicone shock-oil, silicone diff oil plus some grease can be used to satisfy the standard set-up.
handbook and set-up
color user manual with very easy to follow steps, exploded views for easy spares purchasing. A separate manual the transmitter as well as the speed controller is included.
Decals
Black and white promo body-decals ; Serpent generic and SRX8 GT ones.
Packing
The RTR kit is loaded in a colorful large strong packaging field with protection for vehicle and transmitter.
Serpent SRX8 GT RTR 1/8 4wd GP
Main features
- race prepared high end 1/8 fuel driven GT
- expert pre-assembled and pre-set
- 4wd with cardan shafts, 2 compact ,durable
geardiffs, compact radiobox , unique angled
steering system, 16mm big bore shocks, ball
raced anti-roll pubs FR and RR, 6061T6 aluminum
shocktower FR and RR, durable suspension and
transmission parts, captured suspension system pins,
the works !!
- Serpent S21 pull begin engine
- Serpent .21 Pipe set refined Inline
- Dragon-RC pistol kind transmitter 2.4 GHz
- Dragon-RC 15kg strong servo with steel gears
- Dragon-RC high grip premounted GT racetyres and
wheels
- prepainted and precut ultra-low GT bodyshell and
big back aero-wing
- color individual manual and decal set included
had a need to finish the vehicle:
- 4 x AA batteries the transmitter
- Receiver battery NIMH / LIFE / LIPO
- fuel with 16 or 25% nitro and fuel bottle
- glow plugstarter
