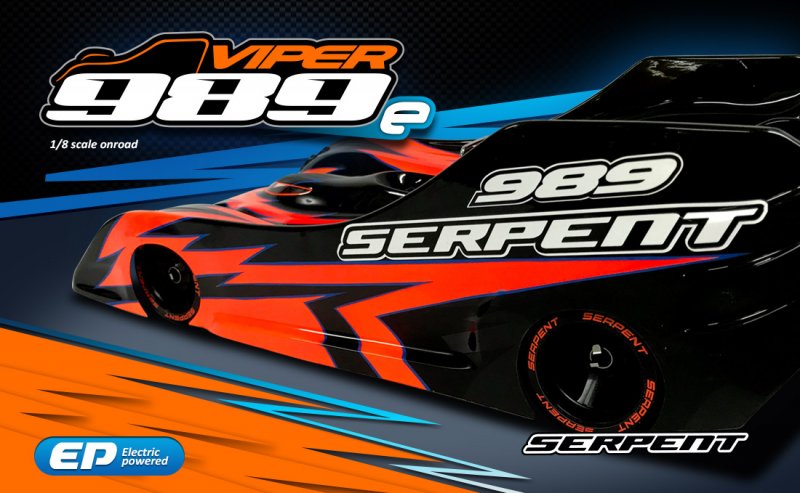

Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP  [SER904005]

Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP
價格:
HKD$4,097.08
牌子:
Serpent
型號:
SER904005
物品狀況:
全新
填寫評論
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
alt="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP" title="Serpent SER904005 Serpent Viper 989E 4wd 1/8 EP"
  • Power distribution starts with all the batteries. We made room for severe energy, 4S, 6S or maybe more. There was plenty of area for them, nevertheless they have been really low in the car.
  • The batteries are mounted on a 2.5mm dense carbon plate. They can be installed in 3 various jobs, changing the CG to change the cars behaviour
  • The elevated speedo mounting plate offers stiffness the battery pack plates and produces additionally space for oversized speedos. Even 1-5 scale speedos fit, a very popular option within the dragster racing scene
  • The topdeck is creating enough stiffness for the entire chassis and carries the receiver, steering-servo and gear tensioner
  • We also took care of engine. We created the space for a large selection of motor sizes.
  • Even long tailor made motors have sufficient room
  • To avoid undesired torsional flex, we created a “power box” round the engine, causeing this to be the main chassis very rigid. To do this, the engine mounting dish is linked to the bearing-block associated with the spur gear shaft, to the framework also to the mounting bracket associated with topdeck
  • Power will be transmitted further with unbreakable, module 1 steel gears
  • Further down we changed to a super wide, 10mm rear gear. The power then goes through the solid backside axle which holds a n aluminium pulley as well

  • For the dragster fans we additionally offer a wheelie club as an option.
  • Overview associated with the primary specs

  • Chassis
    Symmetrical framework dish optimised flex and
    torsion, in 7075 T6 aluminium, anodised and
    laser engraved. Chamfered edges for lots more
    ground approval when cornering and
    countersunk holes.

  • Low big bore shocks
    covered threaded shock systems in good quality
    aluminium. Supersmooth x-ring / machined
    bushing package, to steer and seal the spring-
    metal piston rods. Precision machined pistons
    contained in 3 kinds. Threaded pre-load
    shocknuts in aluminum with O-ring inside. Light but
    strong nylon spring-cups. Selected, matched
    and paired shock absorber springs with color
    coding.

  • Shocktower front side & rear
    The 3mm carbon fibre front side and back shocktower
    with 2 jobs the front and 3 roles
    for the rear for upper surprise mounting.

  • Steering obstructs
    Very strong composite steering obstructs with 2
    Ackermann jobs, L and R use the exact same .
    The steering blocks function inserts, which
    allow to change the kingpin inclination to a
    leading or trailing place. The steering
    blocks additionally enable utilization of the optional carbon
    fiber aero disks become mounted on the cheap flex
    and a far more direct steering feel.

  • Uprights
    Durable medium type composite uprights, which
    seat the wheel-axles bearings. The upright
    supplies the mounting position the metal
    camber-rod with L/R threading. Roll centre
    changes could be made on top of the upright with
    shims. The upright are installed aided by the
    optional carbon fiber aero disks for more back
    hold and straight line stability.

  • Wheel axles and driveshaft
    The durable spring steel wheel axles combined
    with springtime steel driveshafts bring the energy
    towards tires.

  • Pullies
    Precision moulded super-true pullies, which
    feature holed sidewalls to allow debris transfer
    easier. Light and durabele.

  • Belts
    Minimal friction Kevlar reinforced belts with fine
    pitch. Longlasting and smooth.

  • Decals
    The 989 includes one sheet with Serpent
    generic logos and one with 989 logos. Decals
    are particularly thin product and come pre-cut.

  • Serpent Viper 989E
    Designed by Michael Salven.
