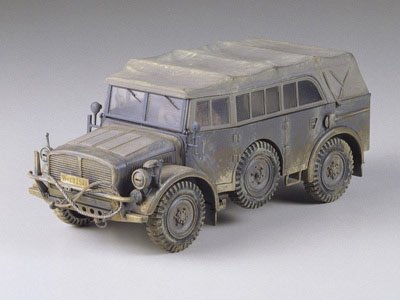

Schwere Einheits PKW A.U. Horch kinds 1a and 1b
Since the Reichswehr of the 1920&39;s ended up being really limited both in proportions and range by the regards to the Versailles Treaty, so when the financial status didn't, regardless, enable lavish paying for gear, a lot of the transportation requirements associated with army were met through adapted commercial cars. Hottest of car kinds, since they were low priced and incredibly mobile, had been personnel companies centered on commercial vehicle framework fitted with a simple open human anatomy associated with type referred to as Kubelsitzer (literally "bucket-seater"). This sort of automobile, once the title suggests, contains a bit more compared to the chassis and normal front end, as in the conventional motor automobile, with sturdy steel supported seats guaranteed toward chassis structures. Folding canvas screens took the spot door, and there is a canvas address, like in a sports car, to be erected in foul climate. Though cross-country performance ended up being very limited, the form of the automobile had been one thing of a trend setter and small utility personnel providers have since be typical gear in all armies.
To enhance on cross-country ability, these very early "Kubelwagens" had big part tyres, strengthened springs, and reduced axle ratios than their commercial equivalents. Through the 1930&39;s, this sort of vehicle saw ever wider usage utilizing the German army and was one of its most characteristic and distinctive types. These "Kubelwagens" had been used as light gun tractors, staff cars, radio vehicles, command automobiles, artillery survey cars, and alert line layers, also serving as workers carriers for motorized devices. Trials held in 1930 had founded your car framework produced by Daimler-Benz, Adler and Wanderer had been top, and these makes predominated in service.
From 1933, when the National Socialist took energy and started overt re-armament regarding the German forces, there was an expansion on a growing scale with mechanisation of greatly enlaged military among concern schemes. In those days the many automobiles on adapted commercial chassis were categorised as follows: Leichte Personnenkraftwagen (light passenger automobile) authorized makeup to 1500cc engine ability. Mittlerer Personenkraftwagen (moderate passenger car) approved make-up to 3,000cc motor capability. Schwerer Personenkraftwagen (heavy passenger vehicle) authorized make up to 3,000cc engine capacity.
The light passenger automobile types were each given a designation according to their meant purpose. Hence Kfz (kraftfahrzeug) 1 was the designation for the basic light personnel carrier; Kfz 2 designated a light signals vehicle (Kraftkahrzeug automobile). The medium cars were designated similaryly from Kfz 11 upwards based on function. Into the hefty course just the Kfz 21 heavy cross country workers carrier ended up being produced, as this is the past type become approved and purchased. It joined service in 1937 and ended up being based on the Auto-Union/Horch EFm chassis, staying in production until 1940 (after Austria had been annexed, the Steyr 1500A was additionally developed to this "heavy" requirement, nonetheless additionally designated Kfz 21). The Auto-Union/Horch EFm model had a V-8 80 hp motor and four wheel drive. Due to its size it had three rows of two seats, seating six men in all. Free wheels had been carried on the side panels flanking the very first and 2nd rows of seats. The ordinary commercial tourer automobile which the military "kubelwagen" a senior officer&39;s staff automobile. The Kfz 21 had been described in German whilst the "Schwerer gelandegangiger personenkraftwagen (6-sitzer)" heavy cross country passenger automobile (6 seater). It had the normal type of open Kubelsitzer human anatomy and a foldable canvas top. General size had been 15 ft 11 ins.
The &39;Einheits&39; Programme
One of many problems presented by the first policy of purchasing commercially based cars ended up being the vast diversity of makes taken on to the inventory, and the associated maintenance and spares supply problem. Various makes of motor, transmission, framework, and so forth meant that the stock of spares needed was enormous. Thus, when the big armament programme got under method, it had been determined in 1934 to restore the range of commercially based chassis with a brand new selection of standardised chassis types. It had been meant your three classes of industry car, light, medium, and heavy, would have many components in keeping, including suspension system devices, and your light and hefty cars could have steerable tires at the front end and right back, and could have four wheel drive. This turned out to be too ambitious a perfect, also right away, the cost and time factor taking part in developing such a sophisticated group of cars had been immense. Just the very early cars had rear wheel steering, which requirement was fallen in 1940 to simplify production. Auto-Union/Horch had been the primary builders of both the medium and hefty passenger vehicles in Einheits programme (einheitsfahrgestell: standard motor chassis). The Automobile Union/Horch Chassis we for heavy passenger cars (schwerer personenkraftwagen)was produced in 1935. Included in the overall plan it was designed to make use of this chassis with a back mounted motor for armoured vehicles along with a front mounted motor for passenger automobiles. The original framework with steerable wheels front and straight back was designated I a, plus the later production chassis (from 1939-40) was designated I b. The framework featured four wheel drive. There was a torque converter with a small differential action to avoid winding up in the transmission. The front axle had been driven straight through the primary gearbox, which included a third differential. There have been five forward gear ratios, one reverse, and an auxiliary low gear for cross country work. There was clearly a self locking differential in the back axle with an ordinary differential at the front, this arrangement ensuring that wheels received driving energy no real matter what the character of the surface. There is fully separate suspension, each wheel having two radius arms sprung by two coil springs between the energy radius supply and a bracket regarding the chassis frmae. Shock absorbers had been included to the suspension system to avoid harm on steering arms. The four wheel steering facilty became unsatisfactory in the long run. The trunk wheel steering ended up being optional, controlled by your pet dog clutch operated by a lever from the driving place. Making use of four wheel steering and driving fast, the car ended up being found to slew sideways; thus it absolutely was maybe not popular and after some experience four wheel steering was forbidden entirely at rates over 13 miles per hour. This limitation made the entire center of such small value that it had been dropeed entirely from 1940 onward manufacturing chassis.
Field automobile manufacturing with tis chassis started later in 1938. Externally all Auto-Union/Horch hefty vehicles seemed alike irrespective of real framework model, however. By 1940 the framework was simplified significantly, and also the Berlin Ford factory was also by then involved in manufacturing. Ford built vehicles had a Ford 3.6 litre V-8 78 hp engine as opposed to the Horch unit. The late 1940 models lacked recesses within the body and framework mounted help hands for spare wheels. Manufacturing ceased in 1941 in preference of a new scheme in Schell-Programm which sought to rationalise vehicle production completely. Within scheme the heavy car shared the framework associated with 1.5 ton light vehicle. Auto-Union/Horch heavy cars stayed in solution throughout World War 2, however, and had been being among the most common of German vehicles on every front side. The Auto-Union/Horch on heavy passenger vehicle framework was found in a few roles, and even though the layout for the available human body then followed the old Kubelsitzer concept, all nevertheless the extremely earliest had the added refinement of steel side doorways rather than canvas part screens. The next were one of the types based on this framework: Fernsprechkraftwagen (Kfz 23) Telephone Truck. Leichter Scheinwerferkraftwagen We (Kfz 83) Light Searchlight Truck We Leichter Scheinwerferkraftwagen II (Kfz 83) Light Searchlight Truck II Protzkraftwagen (Kfz 59: Limber (or towing) Vehicle for Light Guns. Mannschaftskraftwagen (Kfz 81): Light AA Vehicle (some with 2 cm Flak Gun mounted) all of the above had the open human anatomy but differed in function and, in certain cased, internal stowage and equipment. Furthermore, these had been constructed on the chassis: Sanitaetskraftwagen (Kfz 31): Ambulance Verstarkerfraftwagen (Kfz 24): Maintenance Truck Both of these had a shut van kind human anatomy.
