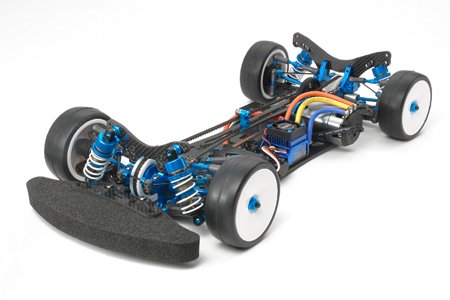

Tamiya 42184 - 1/10 RC TRF417 Chassis Kit 田宮遙控模型平路車套件 雙星孖星  [42184]

This is actually the 2010 IFMAR ISTC World Championship-winning machine, the TRF417 Chassis Kit. TRF417 is made utilizing valuable race information gained through events with the TRF416 and aims to win the world championship in 2012.

Newly Designed Parts

• Front/Rear Carbon Damper Stays
• Front/Rear Aluminum Bulkheads
• Aluminum Motor Mount
• Aluminum Center Shaft
• Aluminum Diff Joint
• Aluminum Steering Arms and Linkage
• Diff Plates
• Wheel Axle
• Cross Joints
• 19T Pulley
• Carbon Lower & Upper Decks (thicknesses TBA)

  Specs & Features

• The chassis design is focused on fat circulation and high-traction traits, with *the brand new minimum framework weight guideline at heart. *The 2012 globe championship regulations suggest that the minimal framework weight is going to be limited to 1,350g. (1,450g in 2010).
• The TRF417 has an optimized framework design for high-power lithium batteries and brushless engines.
• One-piece aluminum motor mount provides additional durability and strength to take care of high-power engines, enabling transmission of the engine power to the drive train with reduced friction loss.
• Compared to the TRF416, the motor position was moved about 2.0mm towards the middle to help keep high traction during race.
• Simply by using a 19T pulley, the inner drive ratio becomes 1.94, which can be very close to the ideal rate for brushless motors (2.0). With this specific, the car has less flexing opposition on drive belts and speed loss is minimized if the throttle is down.
• Newly created steering linkage isn't attached to the top of deck, supplying improved freedom to hold traction during cornering.
• Newly designed ball diff housing and dishes offer extra durability.-Identical front side and back bulkheads.
• Comes equipped with quick reversible suspension system arms and TRF416 uprights.
