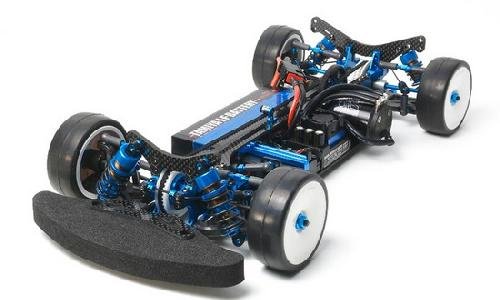

Tamiya 42270 - 1/10 RC TRF418 Chassis Kit 田宮遙控模型平路車套件 雙星孖星  [42270]

• All completely new TRF418 chassis is registered towards the IFMAR World Championships become held in 2014 field. Machine a whole new main components all test tires and power source of latest. Principal chassis section program in minutes, to link the servo mount and suspension hands, stabilizer also has become a new design. Aluminum engine mount as well as bulk corrections, such as fat and front/rear balance. It is a machine that has been developed in for the success associated with battle.
• The brand new TRF418 race chassis is the successor to the TRF417 chassis show, that has offered TRF magnificently since its 2010 first, securing the elite team many race victories including a third IFMAR ISTC World Championships consecutively and unprecedented fifth general. The TRF418 is defined to take touring vehicle race to another location degree using the 2014 IFMAR globe Championship on the horizon! The TRF418 represents initial complete overhaul that Tamiya&39;s top racing framework has undergone in 36 months. Honed through countless tests making use of cutting-edge power sources, tires, and thanks to the feedback of TRF works motorists Marc Rheinard, Viktor Wilck not to mention reigning World Champion Jilles Groskamp, the chassis boasts a very nearly 100per cent brand new design. Tamiya is constantly pushing the restrictions of R/C racing technology in an effort to stay ahead of the pack and secure the TRF team&39;s sixth name, additionally the TRF418 promises become another success story.
• Front side and rear lower bulkheads feature identical design, while top arms have actually an optimal attachment angle.
• Center bulkhead is separate from upper deck, optimizing chassis roll traits.
• Features redesigned front/rear suspension hands with attachment points in devoted racing jobs only.
• a fat loss of 2g happens to be accomplished with a lighter direct coupling.
• Newly-designed stabilizers are now attached using ball connectors.
• Brand new steering arms provide an even more linear steering feel.
• Includes a 20T pinion gear for another gear reduction ratio of 1.85 (minimizing rate loss whenever throttle is disengaged.)
• The united states release of the TRF418 will include the next bonus components. These bonus components is only going to be accessible in kits throughout the initial launch date of December 2013. Kits produced following the December date won't are the bonus components.
• Damper Springs - soft & difficult, 2pcs. each
• Smooth Stabilizer Rods- front & back, 1pc. each
• 1 extra set of Suspension Arms - enough to kit out the framework
• 1 additional pair of Front Uprights - sufficient to kit out the chassis
• 1 extra set of Rear Uprights - sufficient to kit out the chassis

Specs and qualities:

• Scale : 1/10
• Construction type : set up kit
• Terrain usage : on-road
• Drive-train : 4WD
• Drive kind : gear
• Drive line : universal
• Differential type : sealed oil filled gear and Spool
• Suspension : fully separate double wishbone
• Steering system : bell-crank
• Shock damper : oil-filled damper
• Shock damper product : aluminum
• Tire type : perhaps not included
• Tire tread : n/a
• Body material : maybe not included
• Chassis product : carbon fibre dish
• Electronic Speed Control (ESC) : perhaps not included
• ESC model : n/a
• LED Light buckets : no
• Light-emitting Diode lights : no
• Motor : maybe not included
• Bearings : sealed ball bearing
• Adjustable camber : yes
• Adjustable toe perspectives : front side and backside
• Adjustable ground approval : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : yes
• Adjustable track width : yes
• Adjustable surprise angle : yes
• Unique function 1 : brand new finish redesign through the TRF417 series.
• Unique feature 2 : Front and rear reduced bulkheads function identical design, while upper arms have actually an optimal accessory angle.
• Unique function 3 : Center bulkhead is separate from upper deck, optimizing chassis roll characteristics.
• Unique feature 4 : Features redesigned front/rear suspension system hands with attachment points in committed racing jobs just.
• Special function 5 : a weight loss of 2g was achieved with lighter direct coupling.
• Special function 6 : Newly-designed stabilizers are now actually connected utilizing ball connectors.
• Special function 7 : brand new steering hands provide an even more linear steering feel.
• Special feature 8 : Includes a 20T pinion gear for a additional gear decrease ratio of 1.85 (Minimizes rate loss when off throttle)
• Requires A : 7.2 battery pack & charger
• Needs B : 2-channel radio gear
• Needs C : tires, tires, human anatomy set, motor, esc
• Requires D : polycarbonate paint
