Tamiya 42275 - 1/10 RC TRF503 Chassis Set 田宮遙控模型越野車套件 雙星孖星  [42275]

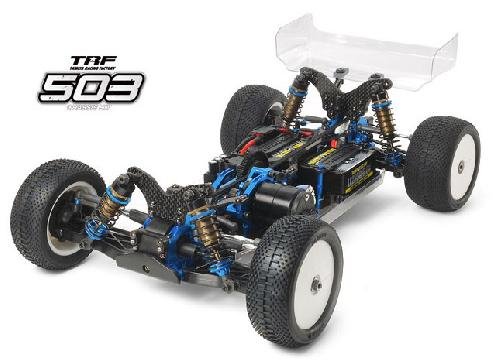

This is the new TRF503 4WD rushing buggy. The 503 is developed many thanks towards the Tamiya Racing Factory group again placing its extensive battle and testing experience to make use of for Tamiya’s racing enthusiast clients. The TRF503 off road chassis is an updated and modified version of the TRF511 that claims to possess more traction and enhanced cornering capability.

Specification

• Scale : 1/10
• Construction type : installation kit
• Terrain use : off-road
• Drive-train : 4WD
• Drive kind : belt
• Drive line : universal
• Differential kind : sealed oil-filled gear
• Suspension : fully independent double wishbone
• Steering system : bell-crank
• Shock damper : oil-filled damper
• Shock damper material : aluminum
• Tire kind : maybe not included
• Tire tread : n/a
• Body product : Polycarbonate
• Chassis material : carbon fiber plate
• Electronic Speed Control (ESC) : maybe not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe angles : front side and rear
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable surprise angle : yes
• Special function 1 : Features a long-wheelbase lower deck. It really is 7.5mm greater in length compared to the 511 for enhanced control on uneven surfaces.
• Special function 2 : The motor position happens to be shifted 10.5mm toward the leading of the framework to enhance controllability, whilst the engine mount is 5mm closer to the centerline, which helps to reduce chassis roll.
• Special function 3 : the capacity to handle higher-power engines stems from the latest single-piece aluminum center pulley.
• Special feature 4 : A weight reduced amount of around 20percent is accomplished by utilizing lightweight aluminum top and lower bulkheads.
• Unique function 5 : The aluminum suspension system plate is angled at 14 levels, which can be nearly double that the TRF511. Damper attachment roles have been raised 2mm on the front stay, for optimized front damper rebound.
• Special function 6 : Universal shafts are guaranteed with ring connectors.
• Special feature 7 : Includes 39T oil-filled gear differentials, big bore aeration dampers
• Requires A : 2-channel radio gear & electronic speed control
• Requires B : 7.2 battery & charger
• Requires C : polycarbonate paint
• Requires D : tires
