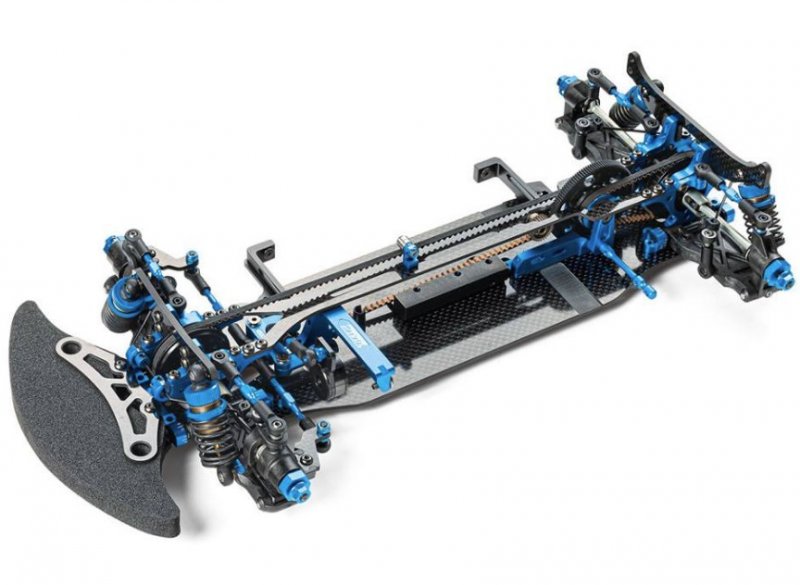

Tamiya 42345 - TRF420 Chassis kit 田宮遙控模型平路車套件 雙星孖星  [42345]

•1/10 scale 4WD R/C touring vehicle chassis model installation kit.
•2 belt-driven 4WD drivetrain makes use of rear gear differential and front/center direct pulley.
•New gear diff pulley and situation components offer a weight savings of 1.5g,
•Less oil leakage from newly designed diff parts.
•Front direct pulley and direct holder are produced from a synthetic component for a weight savings of 2g when compared with past designs making use of separate parts. Direct cups are screw-attached, enabling their replacement without the necessity to get rid of the direct pulley component.
•New dual cardan universal shaft design.
•Employs a carbon fibre double-deck frame (2mm thickness top and lower decks) just for the right balance of flex traits.
•New suspension system supply design, designed to use bushing inserts allowing various lever ratios.
•Rear hands are 3mm offset on rear, allowing a shorter reduced deck and increased traction.
•New adjustable suspension mounts and synthetic bushing design. Changing the bushings allows a large range of toe, roll center and caster angle settings.
•An updated steering linkage is now combined with a new steering pivot component, for effortless tweaks to your steering setup.
•New Bearing holders (on gear diff and front direct pulley) provide more exact location and a super-smooth drivetrain.
•The bumper design happens to be altered so as to not affect chassis&39; roll faculties.
•New body mounts are 2mm offset; alter their attachment position for different human anatomy mount location and fine tuning of one's car&39;s center of balance.
•New Lightweight wheel axles weigh more or less 1.5g significantly less than predecessors and allow a choice between clip or grub screw fastening.
•New suspension system shafts are made of durable stainless steel. At 3mm in diameter, they've been thicker than previous 2.6mm components for a sturdier suspension system setup. They will have a consistent groove for easier grub screw attachment.
•New 2-part front upright designs utilize separate arm and bearing housing components.
•New rear uprights are redesigned for use with 3mm diameter shafts.
•New front hub providers are revised designed for this framework, with greater opposition to shocks and crashes. Also, they are appropriate for 3mm diameter shafts. Upper and reduced flanged pipes are actually identical.
•Required to perform: 190mm GT human body set, 24mm wheels and tires, 2-channel radio, servo, ESC, 7.4 race battery pack and compatible charger, and 540-size racing motor.
