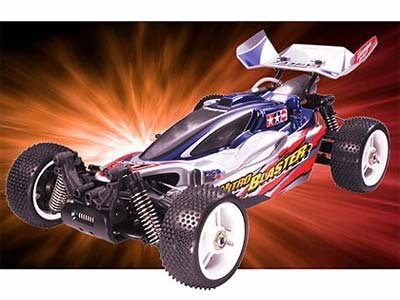

High Speed Motor R/C Made Simple! The high pitched screaming engine, the sweet scent of gas and exhaust fumes, the awesome rate from the begin line, nothing quite compares to the buzz of motor R/C. Whether you&39;re already hooked and seeking for a higher performance straight forward new trip, or perhaps you are not used to engine R/C, the Nitro Blaster will certainly satisfy. Set contains factory built chassis fully equipped with a strong 2.5cc engine, completely completed human anatomy with stickers pre-applied, and trigger kind transmitter. Effective at lightning speeds on both dust and on-road songs, Nitro Blaster will leave your competition behind no matter the terrain. Brand New Tech, Awesome Performance! Nitro Blaster is running on Tamiya&39;s NDF-01 framework, featuring aluminum die-cast engine mount built-into very durable resin lower deck for optimum heat dissipation and low center of gravity, and engine and fuel tank loaded to the center of chassis for ideal weight distribution. The massive power from 2.5cc motor is converted to genuine operating performance via center bulkhead, completely sealed and bearing packed differential gear box, and universal bones. Using the NDF-01, you not only get a strong radiance motor, but a very efficient and intensely dependable racing device.
Powerful FR-15S Motor Effective recoil start FR-15S motor features 2.5cc displacement with big diameter slide-valve carburetor and rear exhaust design. Engine features adjustable main needle and idle needle to acquire maximum engine performance. High performance disk brake system supplies the safe and controlled braking essential for a high-powered motor.
Frontal Influence Control System (FICS) 4-wheel independent double wishbone suspension system features extra long suspension system hands expanding from center of chassis. Front suspension system hands are protected by front influence Control System (FICS), which absorbs effect during a front-on collision by an expandable suspension mount. Camber angle and toe can also be adjustable for both front side and back wheels.
Large-sized Ball Bearings Extra large ball bearings, including 2112 bearings, are utilized throughout the drive train for very long lasting, efficient performance. Exceptionally smooth chassis base for best skid performance is acquired via sinking all screw heads and eliminating any height distinction between lower deck and aluminum die-cast motor mount.
Trigger Type Transmitter for Precise Control Transmitter is specifically created by renowned German commercial designer, H. A. Muth, designer for the Suzuki GSX1000S Katana motorcycle. The initial, ergonomic design, features steering wheel and trigger positioned for maximum performance with minimal interruptions. All components that require a soft touch for accuracy maneuvering like tyre, trigger and grip were created from top quality soft resin. Control switches and trims are found regarding the front for a user friendly design.
Basic Requirements
- Overall length: 440mm, width: 265mm, height: 175mm
- Overall weight: 2590g (*Weight includes batteries loaded, fuel unloaded)
- Chassis product: fibre glass based nylon
- Suspension: Independent dual wishbone front and rear suspension
- Drive train: Shaft driven 4WD
- Tire width/diameter: 40/90mm (front side and back)
Products needed (offered individually) Glow plug heater, gas filler, glow-engine gas and R6/AA/UM3 batteries for transmitter & receiver
Number of Tune-Up Options ITEM No. PRODUCT NAME
- 53778 NDF-01 Off-Road Spring Set
- 53780 NDF-01 2-Speed Transmission
- 53781 2112 Sealed Ball Bearing Set (2 pcs.)
- 53799 NDF-01 internal Sponge (4 pcs.)
- 53801 NDF-01 Twin Brake Set
- 53802 NDF-01 Reinforced Drive Flange Shaft
- 53803 NDF-01 On-Road Stabilizer Set
- 53812 NDF-01 2-Speed Transmission Steel Joint Ball
- 53813 NDF-01 2-Speed Transmission Reinforced Clutch Bell
- 53814 NDF-01 2-Speed Transmission Driven Gear (54T/57T)
- 53815 NDF-01 2-Speed Transmission Drive Gear 12T (1st Gear)
- 53816 NDF-01 2-Speed Transmission Drive Gear 13T (1st Gear)
- 53817 NDF-01 2-Speed Transmission Drive Gear 14T (2nd Gear)
- 53818 NDF-01 2-Speed Transmission Drive Gear 15T (second Gear)
- 53819 NDF-01 Reinforced Steel Drive Gear 12T
- 53820 NDF-01 Reinforced Metal Drive Gear 13T
- 53821 12mm Aluminum Wheel Nut (4 pcs.)
RTR NITRO XB KITS NEED: (unless reported in a different way above)
- Battery: 4AA for Receiver 8AA for Transmitter
- Gas: Nitro Glow Gas
- Beginning Equipment: Glow igniter
- Misc. Things: Building and track gear
