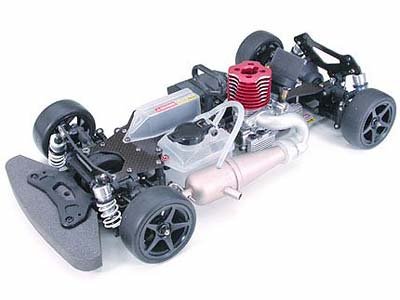

Tamiya 44032 - 1/10 TG10R Chassis Kit 田宮遙控模型油動車套件 雙星孖星  [44032]

Towards TG10R

The glow-engine (TG10) competition scene has become faster and hotter than ever before utilizing the brand new competition version of the glow engine chassis, the TG10R. Made for race, this framework employs a 2.5mm thick, hardened carbon double-deck frame. The framework also packs 4-wheel dual wishbone suspension along with high-efficiency TRF dampers and stabilizers. 2.5mm thick carbon damper stay are fine-tuned and is highly responsive. This 198mm wide framework takes on high-speed cornering with remarkable stability. The TG10R framework employs equivalent 6mm diameter axles used in the 1/8 Scale R/C Glow Engine vehicle TGR chassis and brings along with it the exact same power. Responding to expert driver demand, this framework comes fully packed with requirements necessary for rushing on the edge!

Crucial Racing Features

• Complete ball bearings
• Carbon-built upper deck
• Front/Rear carbon damper remain 2-speed objective
• High-grade brake disk TRF
• Damper Front universal shaft
• Front/Rear stabilizers Medium-narrow tire, kind A

Fundamental Requirements

• Overall length: 376mm
• General width: 198mm
• Total height: 100mm (excluding body mounts)
• Clearance: approx. 7mm (adjustable)
• Weight completely equipped: 1,580g (unfueled with 4 R6/AAUM3 batteries, Novarossi motor and TM2 Muffler)
• Wheelbase: 260mm
• Tread F/R: both 174mm
• Chassis product: 2.5mm Duralumin +2.0mm Carbon Fiber
• Chassis form: double deck framework
• Steering tie rod: 3 part
• Suspension system: front and back double wishbone
• Caster angle-F/R: 8deg/0deg
• Camber angle-F/R: adjustable
• Toe angle-F/R: adjustable/1.5deg
• Damper: F/R TA04R super low-friction
• Transmission kind: Shaft drive full-time 4WD
• Gear ratio: 8.1:1-6.4:1 (7.5:1-5.6:1)
• Diff. gear system: F/R 3-bevel diff
• Gas tank capability: 75cc
• Brake: disk kind
• Tire width: F/R both 24mm
• Tire diameter: F/R both 64mm
• Tread pattern: F/R slicks
