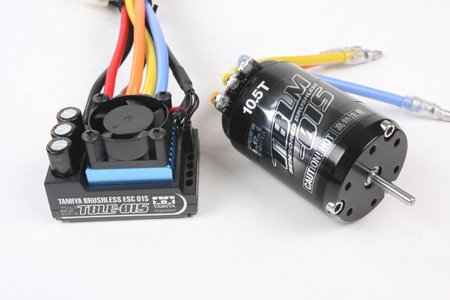

Tamiya 45048 - RC Tamiya Brushless Motor 01 - 10.5T/Brushless ESC01 Sensored 田宮無線電遙控系統摩打&配件 雙星孖星  [45048]

*Not appropriate for trucks, CR-01 and twin-motor chassis devices.

*To enhance performance while the life associated with the motor, regularly lubricate motor bearings with Item 53508 or 53782.

12T Specification

KV: 3050KV (KV denotes RPM per volt), body weight: 200g, Input Voltage: 6.6-7.2V.

Concerning the Sensored Brushless ESC

This ESC is especially made for usage with all the TBLM-01S variety of Tamiya Brushless Motors (Sensored). As well as 5 preset profiles,settings such as braking system, neutral brake, and dead band are modified separately. Additionally features 3 security systems including overheating, overloading, and low voltage.

ESC Specifications

• Suitable for Tamiya, KO, Futaba, JR, and SANWA receivers.
• Features Forward, Reverse, and Brake functions. *Reverse function may be terminated.
• ESC also features Overheat, Overload, and minimal Voltage protection systems-Compatible with Tamiya TBLM-01S Series motors. *Only to be used with sensored brushless motors.
• Max. Continuous Present: 100A, Receiver Voltage: 5V, Receiver Active: 3A, Drive Frequency: 16KHz.
• Measurements: 47x35.5x31mm, Body weight: 90g (Including cables).
