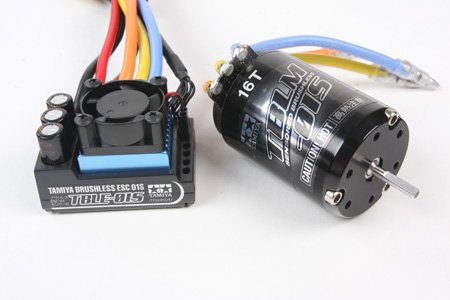

Tamiya 45049 - RC Tamiya Brushless Motor 01 - 16T Brushless ESC01 Sensored 田宮無線電遙控系統摩打&配件 雙星孖星  [45049]

About Sensored Brushless Motors

Sensored brushless engines provide smooth procedure at both low and high speeds. The sensor&39;s positional feedback is combined with the ESC&39;s RPM data to provide a high amount of control. Brushless design makes for long motor life and paid off maintenance hassle.

*Not compatible with trucks, CR-01 and twin-motor chassis machines.

*To enhance performance and also the life of motor, regularly lubricate engine bearings with Item 53508 or 53782.

18T Specification

KV: 2100KV (KV denotes RPM per volt), body weight: 200g, Input Voltage: 6.6-7.2V.

Towards Sensored Brushless ESC

This ESC is very designed for use aided by the TBLM-01S number of Tamiya Brushless Motors (Sensored). In addition to 5 preset profiles,settings such as braking system, neutral brake, and deadband can be adjusted individually. In addition features 3 protection systems including overheating, overloading, and low voltage.

ESC Specification

• Compatible with Tamiya, KO, Futaba, JR, and SANWA receivers.
• Features Ahead, Reverse, and Brake functions. *Reverse function could be cancelled.
• ESC also features Overheat, Overload, and Low Voltage security systems-Compatible with Tamiya TBLM-01S Series motors. *Only for use with sensored brushless motors.
• Max. Continuous Current: 100A, Receiver Voltage: 5V, Receiver Active: 3A, Drive Frequency: 16KHz.
• Measurements: 47x35.5x31mm, Body weight: 90g (Including cables).
