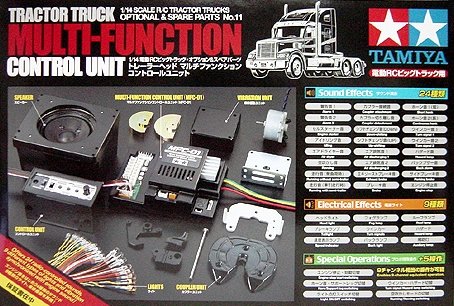

Tamiya 56511 - 1/14 R/C Tractor Truck Multi-Function Control Unit MFC-01 (MFU) 田宮遙控模型貨櫃拖頭/車 雙星孖星  [56511]

Has 24 radio-controlled noises, 9 different types of lights and vibration synchronized with motor sound.The Trinity of Sounds, Lights, and Vibration creates Maximum Authenticity.

Electrical Effect: (20 LED for 9 light functions)

All lamps used with the multi function device are high brightness kind LED. They are employed to replicate headlights, position lamps, roof lamps, rate indicators, fog lamps, back lamp, end lamps and blinkers/hazard lamps, which is turned on/off aided by the transmitter.

• Head light
• Fog lamp
• Roof lamp
• Speed indicator
• Turn signals
• Hazard lamp
• Tail lamp
• Straight back lamp
• Aux light

Sound Impact: (24 Radio-Controlled Sound Clips)

• Alarm
• Engine starter
• Idling
• Air dryer
• Revving
• Operating without semi-trailer
• Operating with semi-trailer
• Coupler accessory Coupler detachment
• Down-shifting
• Up-shifting
• Air discharging 1
• Air discharging 2
• Exhaust brake
• Brake
• Brief horn
• Continuous horn
• Turn signal 1
• Turn sign 2
• Hazard
• Back security
• Parking braking system
• Motor stop
• Alarm 2

Optional Parts Usable Simultaneously:

• Item: 56502 Semi-trailer Light Set
• Item: 56505 Motorized Support Legs
• Note:Tractor Vehicle Electrical Device Set(Item: 56501),Tractor Truck Sound Impact Set,and Components contained in these products can not be uesd with or replaced with this unit.

Records:

• Always utilize 540 Type motor contained in kit otherwise the electronic rate controller inside MFC-01 Unit may malfunction.
• With a few framework, back lamp, front side and rear auxiliary lights, and/or rate indicator cannot be fired up.
• Some chassis require extra holes for installation. Utilize 4mm pin vise for making holes.

Required RC System

• 4 Channel transmitter (self-neutral stick type with 4 channel trims), a 4ch-receiver and 2 servos (3 servos are expected when installing 56505 Motorized Help Feet). No electrical rate controller is necessary as MFC-01 Unit covers that function.Receiver battery (6V) is not needed.
• Transmitter which function click-touch kind trims could potentially cause difficulty whenever using with tamiya Multi-Function Units.
• Some connectors may not be appropriate.Modification might needed.
• Wheel trigger kind transmitter or one without trims really should not be utilized at all.
• PCM receiver , multi-channel receiver plus the older SANWA receivers (with black colored case) are not designed for this kit.
• When installing MFC-01 device into conventional truck models, servo extension cables may be needed. Utilize extension cables (offered separately) to ensure that general cable size becomesmore than 50cm
