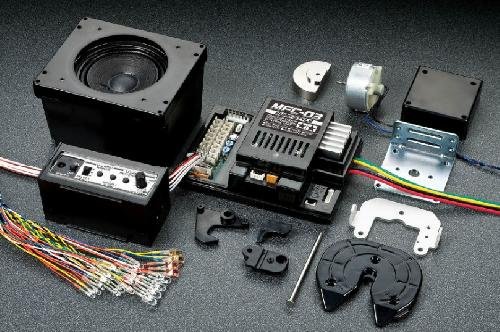

Tamiya 56523 - MFC-03 Euro-Style Multi Function Control Unit 田宮遙控模型貨櫃拖頭/車 雙星孖星  [56523]

Tamiya 56523 along with multi-function control devices which permit different lights, sound and vibration impacts in Euro-Style. which adds a complete extra layer of realism to driving, receives an update. This device enables transmitter trim levers to be along with stick control use, meaning you can enjoy lights, noises and vibrations coordinated with actions while driving your R/C tractor truck model.Engine sounds recorded through the genuine European L6 Diesel. Lights, sound and vibration controllable from transmitter. Air sound effects expertly recreated. Vibration levels associated with engine rate for supreme realism. Engine noise modifications whenever coupled to trailer

Specification:

• Features 33 several types of sound, including engine ignition and shutdown, horn, gear changes, brakes, atmosphere sound files an such like. A 60mm-diameter full-range speaker in a resin instance provides excellent quality.
• Up to 21 actions could be controlled making use of a 4-channel transmitter. Tamiya/Futaba 4VWD Attack 2.4 GHZ Radio System 4-channel and 4YWD-2.4G are suitable for most useful compatibility.
• Light procedure and volume adjustment are also feasible utilizing the transmitter.
• Includes white, red and yellow high brightness LEDs to replicate truck HID lights with precision.
• An ESC happens to be built-in to the product, enabling realistic operating at suprisingly low rates.
• The MFC device is run in three modes: R/C mode with Multi-Function (lights and sounds) off; Multi mode, with R/C and multi-function on; Demo mode, that allows display of lights and sounds just.
• Can be utilized for support leg procedure when using Item 56505 Motorized help thighs.
• Cannot be used as well as Item 53909 TLU-01 or Item 53937 TLU-02 Light-emitting Diode light devices.
• Needs individually sold 4ch transmitter with fall trims, 4ch receiver and 2 servos (3 if making use of Item 56505). Tamiya Attack 2.4 GHZ Broadcast System 4-channel recommended for most useful compatibility.
• Sound clips x 33 Actions
• Light effects x 16 Actions
• Process x 21 Actions
• Mode x 3 Modes
• Vibration Device

MFC-03 Requirements

• Voltage: 6.6-7.2V
• Usable Temperature : -10 degree to 50 degree
• Space Temperature : -20 degree to 50 level
• Maximum engine present: 60A
• Usable engines: kit-included Type 540 motor,Tamiya tractor truck choice components engines.

Required R/C System

• This kit calls for these products (perhaps not a part of kit): a 4ch transmitter (self-neutral stick type with lever-type 4ch sliding trims), a 4ch receiver, and 2 servos (3 when using with 56505 Motorized help Legs.)
• Electronic speed controller and receiver battery (6V) aren't required.
• Suggested R/C transmitter/receiver units: Futaba ATTACK 4YWD-2.4G / R204 GF-T or Futaba ATTACK 4WD T4VWD/FP-R114H. *Transmitters with click-touch kind trims may cause trouble when working with with
• Tamiya Multi-Function Control Devices.
• If using transmitter apart from those recommended above, ensure that could it be self-neutral kind and utilizes sliding trim levers. Transmitters without self-neutral system or non-sliding trim levers (e.g. click-touch) might not understand optimum efficieny.
• Some connectors may possibly not be compatible, or modification are required.
• Never utilize with wheel trigger type transmitters or transmitters without trims.
• PCM receiver, multi-channel receivers can't be used with this kit.
• Whenever setting up this product into old-fashioned truck models, servo extension cables are required. Use extension cables (offered separately) to ensure cable size exceeds 50cm.
