Tamiya 58282 - 1/10 TA04-R Chassis Kit 田宮遙控模型平路車套件 雙星孖星  [58282]

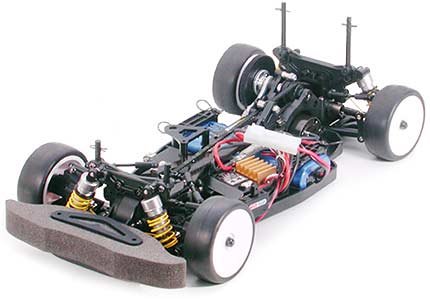

Tamiya 58282 - 1/10 TA04-R Chassis Kit
價格:
HKD$3,313.69
牌子:
Tamiya
型號:
58282
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Touring Cars - Electric Powered
類別中嘗試尋找類似的產品
填寫評論
alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"
alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"
alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"

Double-deck frame of chassis features carbon reinforced resin lower deck and complete carbon upper deck for increased durability. Chassis employs 2-belt 4WD with the full group of ball bearings in addition to ball differential gears for maximum drive effectiveness. With a complete selection of choice parts and suspension that can be fine-tuned, this R/C chassis stays real to pure race. (engine, battery pack and speed control perhaps not included)

Designed for Speed, down seriously to the Wheels Double wishbone suspension includes clearance adjustment procedure and super-efficient wheel dampers. F/R upper arms, steering tie rods, and torque rods feature turnbuckle shafts capable of fine adjustment.
The 04 Module Spur Gear- the Icing on Cake 04 module spur gear employs carbon plating to put on gear in position. 45T Pinion gear is sold with 128, 120, 112T spur gears. Chassis comes with aluminum motor temperature sink to facilitate effective heat escape.

2 Belt Drive 4WD- a Recipe for Drive Efficiency
The TA04-R&39;s 2 Belt Drive 4WD system affords minimized friction for maximum sporting efficiency.

Specifications

  • Chassis Type: TA04-R
  • Scale: 1/10
  • General Length: 355mm
  • General Width: 186mm
  • Total Height: 135mm
  • Clearance: 8mm
  • Body weight Fully Equipped: 1,425g (Dimension includes TP-S3003 servo, CPR device and RC2400SP Battery, without human body.)
  • Wheelbase: 257mm
  • Tread F/R: both 162mm
  • Chassis Material: Carbon/Carbon fiber reinforced nylon
  • Chassis Shape: Double Deck Frame
  • Steering Tie Rod: 3 component
  • Suspension: Front and Rear Double Wishbone
  • Caster Angle-F/R: 6deg/2deg
  • Camber Angle-F/R: adjustable
  • Toe Angle-F/R: 0 deg. adjustable/4deg
  • Damper: F/R TRF Damper
  • Transmission Type: Belt Mid-ship Full-time 4WD
  • Gear Ratio: 5.69:1 (kit standard)
  • Diff. Gear System: F/R Ball Diff
  • Suggested Speed Controller: Electronic Speed Controller
  • Tire Width: F/R both 24mm
  • Tread Pattern: F/R Slicks
  • Tire Diameter: F/R both 64mm
Optional Parts Included
  • Carbon Reinforced Resin Lower Deck
  • TRF Dampers
  • Aluminum Rear Bulkhead Beam
  • Aluminum Servo Stay
  • Urethane Bumper
  • Universal Shaft
  • 5mm Aluminum Ball Connector (10 pcs.)
  • Medium-Narrow Reinforced Tires Type A
  • Medium-Narrow Smooth Inner Foam (1 Set)
  • TA04 Ball Differential Device
  • TA04 Aluminum Engine Heat Sink
  • On-Road Tuned Tricky Spring Set
  • TA04 Color Stabilizer Set (Front)
  • TA04 Colors Stabilizer Set (Rear)
  • 4mm Tough Lock-Nut & Spacer Set
  • TA04 Aluminum Hub Set For Spur Gear
  • TA04 Rushing Hub Carrier Set
  • TA04 Toe-In Back Uprights
  • TA04 Minimal Friction Belt (Front)
  • TA04 Low Friction Belt (Rear)
  • TA04 Carbon Upper Deck
  • Complete Bearing Set
  • *F/R Upper Arm, Steering Rod, Steering Linkage, and Torque Rod all use Turnbuckle Shaft.
ELECTRICAL KITS REQUIRE: (unless reported differently above)
  • Radio: 2-Channel with servo(s)
  • Battery: 6-cell flat with standard Tamiya connector
  • Charger: AC/DC timed or top for 6-cell battery pack
  • Paint: PS for Polycarbonate/TS for ABS
  • Misc. Products: Building and track gear
