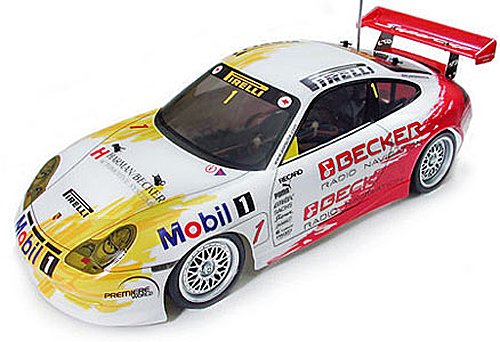

Tamiya 58283 - 1/10 Porsche 911 GT3 Cup 'VIP' Car (TL-01) 保時捷 田宮遙控模型平路車套件 雙星孖星  [58283]

Towards Porsche 911 GT3 Cup "VIP" vehicle

That is one of many effective GT vehicles that competed in pre-race of this European F-1 circuit, the Porsche Super Cup. The car&39;s sleek external look, with front side air dam and aerodynamic back wing, hint during the force that lies within- the 3.6 liter 6 cylinder horizontally opposed engine with 360 hp of production. Internally and externally, this vehicle ended up being made with something at heart...racing.
Shaft-drive 4WD TL-01 Chassis
This R/C automobile employs the highly dependable 4WD TL-01 framework. The lightweight, high-durability monocoque framework makes use of double-wishbone 4-wheel suspension system. Exceptional weight distribution allows exemplary management.

Requirements

• Chassis Type: TL-01
• Scale: 1/10
• Length: 18.27 inches (464mm)
• Width: 7.48 ins (190mm)
• Wheelbase: 10.12 ins (257mm)
• Front Tread: 6.14 ins (156mm)
• Rear Tread: 6.38 inches (162mm)
• Weight: 3.48 lbs. (1580g)
• Chassis: ABS Monocoque
• Suspension: 4 wheel separate
• Damper Type: synthetic coil over friction
• Drive Train: 4WD shaft drive
• Gear Ratio: 7.96:1
• Differential Type: Bevel Gear
• Motor: Electric 540
• Speed Controller: 3 Action F&R Mechanical
• Wheels & Tires: 10 spoke / Slick
• Physique: Clear/Polycarbonate
• Steering tie pole: 2 part
• Suspension: front side and rear dual wishbone
• Damper: friction damper
• Transmission type: shaft drive mid-ship full-time 4WD
• Diff. gear system F/R: 3-Bevel Diff
• Tire width F/R: both 27mm
• Tire diameter F/R: both 64mm
• Tread pattern F/R: slicks
• Energy supply: 7.2V battery pack (maybe not Included)


Spare Parts & Hop Up Alternatives

53467 - TL-01 & FF02 longer suspension arm set
53440 - On-road tuned hard springtime set
53418 - TL-01 Universal shaft (2pc.)
53347 - 3x3mm springtime set screws (10pc.)
53346 - TL-01/M03 fast release battery pack holder
53345 - TL-01/M03 toe-in backside upright
53342 - TL-01 speed-tuned gear set
53333 - Touring car tuned springtime set (brief)
53324 - TL-01 stabilizer set
53323 - TL-01 carbon propeller shaft
53322 - TL-01 hollow carbon gear shaft
53303 - TL-01 adjustable upper arm set
53301 - TL-01 stainless steel suspension shaft set
53300 - TL-01 turnbuckle tie-rod set
53295 - Tire inner foam
53292 - TL-01 ball bearing set
53280 - TA03 super low friction damper set (4pc.)
53267 - TA03 ball differential
53163 - On-road tuned springtime set
53162 - 4mm anodized aluminum flanged lock peanuts (black)
53161 - 4mm anodized aluminum flanged lock nuts (gold)
53160 - 4mm anodized aluminum flanged lock nuts (red)
53159 - 4mm anodized aluminum flanged lock peanuts (azure)
53144 - Touring & rally car bushing & ball connector set
53141 - 4WD touring & rally car lightweight king pins
53095 - 3x10mm titanium tapping screw (10pc.)
53056 - Pin kind wheel adapter
50357 - 22T, 23T AV pinion gear set (only the 23T gear inside set works with all the TL-01)
50356 - 20T, 21T AV pinion gear set (only the 21T gear works aided by the TL-01)
