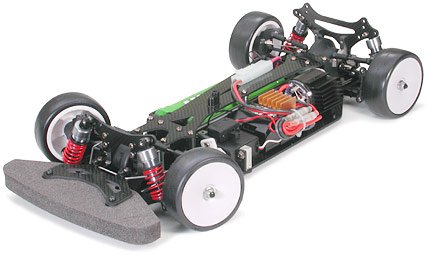

The TB Evolution evolves just as before! The pure racing kind of the TB Evolution chassis, with its longitudinally set up motor and shaft 4WD has reached the next stage of chassis development. This next level of evolution means a level faster top speed, a transformation in suspension geometry for improved control, and an even more balanced left/right roll. Ahead and rear gear situations have been firmly fastened with aluminum bulkheads. Chassis employs aluminum suspension mount enabling modification of skid angle on suspension system hands.

TB Evolution II includes not merely the full array of newly created standard components, but an arsenal of cutting-edge race option parts aswell!

  • 2.5mm-thick carbon reduced frame
  • 2.0mm-thick carbon top framework
  • 2.5mm-thick forward/rear carbon damper stay
  • 2.5mm-thick carbon human anatomy mount stay
  • 2.0mm-thick carbon battery pack dish
  • TRF dampers
  • Aluminum suspension mount
  • Aluminum motor mount
  • Aluminum propellar shaft
  • Complete bearing set
  • Aluminum motor temperature sink
  • Aluminum servo stay (brief)
  • Light-weight aluminum wheel hub
  • Front/rear universal shaft
  • Special ball diff.
  • Front one-way
  • Front/rear stabilizer
  • Specialized urethane bumper
  • Fiber mold tire, medium-narrow kind A
Requirements
  • Overall length: 378mm
  • General width: 187mm
  • Minimum approval: 5mm
  • Body weight fully equipped: 1,490g (including TP-S3003 servo, CPR Unit, engine, RC3000MH battery)
  • Wheel base: 257mm
  • Tread (front side and rear): 163mm
  • Chassis material: carbon
  • Chassis type: double deck framework
  • Steering tie rods: split in three sections
  • Suspension system (front side and rear): double wishbone
  • Caster angle (f/r): 8deg/0deg
  • Camber angle (f/r): variable
  • Toe angle (f/r): 0deg (variable)/3deg
  • Skid angle: 1.6deg/0deg
  • Dampers (f/r): TRF dampers
  • Drive train: shaft driven, full-time 4WD
  • Gear ratio: 6.73:1(kit standard)
  • Diff gear system (f/r): ball diff.
  • Speed controller: electronic speed controller
  • Tire width (f/r): 24mm
  • Tire diameter (f/r): 64mm
  • Tread pattern (f/r): racing slick

*Limited Editionn
Motor, body, R/C equippment, and battery pack sold individually

ELECTRICAL KITS NEED:: (unless reported in a different way above)
  • Broadcast: 2-Channel with servo(s)
  • Battery: 6-cell flat with standard Tamiya connector
  • Charger: AC/DC timed or peak for 6-cell battery pack
  • Paint: PS for Polycarbonate/TS for ABS
  • Misc. Products: Building and track gear
