Tamiya 58290 - 1/10 RC Toyota MR-S Racing (TA04-SS) 豐田 田宮遙控模型平路車套件 雙星孖星  [58290]

Towards Toyota MR-S Racing

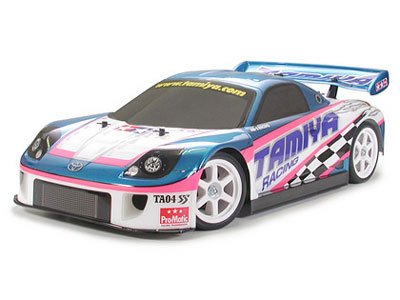

The Toyota MR-S made its debut on the market in October 99 as a Mid Ship 2-Seat Sports Vehicle. Using its agility and high traction abilities, this well transformed machine has excelled into the Japanese GT Championship. Tamiya is proud presenting the R/C replica regarding the hard top racer Toyota MR-S featuring projecting front side and rear fenders and oversized rear wing.
Quick Wheelbase TA04-SS Chassis
The TA04-SS framework has been developed from TA04-S chassis and features a shortened wheel base with specifically created suspension system hands. The wheel base happens to be shortened 10mm to offer sharper turn ability. The agility of this TA04-SS provides you with true R/C excitement.

Specifications

• Chassis Type: TA04-SS
• Scale: 1/10
• General Length: 404mm
• Overall Width: 189mm
• General Height: 117mm
• Minimum Clearance: 8mm
• Weight Fully Equipped: 1,630g (including TP-S3003 servo, CPR device, RC2400SP battery pack)
• Tread (f/r): 162/162mm
• Chassis Material: top deck/Polycarbonate lower deck/ABS resin
• Chassis Type: Resin kind double deck
• Steering Tie Rods: divided in three segments
• Suspension system (front side and back): double wishbone
• Caster Angle (f/r): 10deg/2deg
• Toe Angle (f/r): 0deg(variable)/2deg
• Dampers (f/r): CVA Mini II dampers
• Drivetrain: gear driven midship full-time 4WD
• Diff gear system (f/r): 3 bevel differential
• Gear Ratio: 7.08:1(kit standard)
• Ball Bearings: Full ball bearings (24 in most)
• Speed Controller: electronic speed controller
• Tire width/diameter F/R: 27mm/65mm
• Tread pattern (f/r): rushing sleek tires


Necessary Products (Available Separately)

• 540 engine
• R/C product: Adspec GT-I or FET 2-channel R/C device with electronic speed control
• Battery: Tamiya 7.2V Racing Pack or 7.2V Advance Pack.
