Tamiya 58296 - 1/10 RC Car CLK-DTM 2002 AMG Mercedes (TL-01 LA) 田宮遙控模型平路車套件 雙星孖星  [58296]

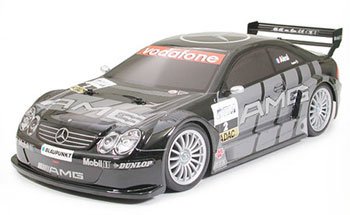

The AMG Mercedes CLK-DTM 2002 piloted by previous F1 motorist J.Alesi, has been reproduced by Tamiya as an R/C automobile. It really is on the basis of the lightweight high end monocoque framework shaft-driven 4WD TL-01LA chassis. Long suspension arms provide superb maneuverability also on somewhat rough terrain. Requires a 2 channel radio and 7.2V battery pack.

Specs and Features:

• Scale : 1/10
• Construction type : construction kit
• Terrain usage : multi-purpose
• Drive-train : 4WD
• Drive kind : shaft
• Drive line : dog bone tissue
• Differential kind : gear
• Suspension : fully separate dual wishbone
• Steering device : direct servo
• Shock damper : friction damper
• Shock damper material : plastic
• Tire kind : plastic
• Tire tread : radial
• Body product : Clear Polycarbonate
• Chassis product : plastic
• Electronic Speed Control (ESC) : not included
• ESC model : mechanical
• LED Light buckets : no
• Light-emitting Diode lights : no
• Engine : 540-brushed kind
• Bearings : steel and synthetic bushings
• Adjustable camber : fixed
• Adjustable toe perspectives : front side just
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable shock angle : fixed
• Unique function 1 : Chassis Type: TL-01LA
• Special feature 2 : Length: 17.71 inches (450mm)
• Special function 3 : Width: 7.28 ins (185mm)
• Special feature 4 : Wheelbase: 10.11 inches (257mm)
• Special function 5 : Front Tread: 6.18 ins (157mm)
• Special feature 6 : back Tread: 6.18 ins (157mm)
• Unique feature 7 : fat: 3.62 lbs. (1570g)
• Special function 8 : Gear Ratio: 7.96:1
• Special function 9 : Tire width F/R: both 27mm
• Special function 10 : Tire diameter F/R: both 64mm
• Requires A : 7.2 battery pack & charger
• Needs B : 2-channel radio gear
• Requires C : polycarbonate paint

Spare Parts & Hop Up Options:

• 53467 TL-01 & FF02 Long suspension system supply set
• 53440 On-road tuned hard springtime set
• 53418 TL-01 Universal shaft (2pc.)
• 53347 3x3mm spring set screws (10pc.)
• 53346 TL-01/M03 fast release battery pack holder
• 53345 TL-01/M03 toe-in backside upright
• 53342 TL-01 speed-tuned gear set
• 53333 Touring car tuned springtime set (brief)
• 53324 TL-01 stabilizer set
• 53323 TL-01 carbon propeller shaft
• 53322 TL-01 hollow carbon gear shaft
• 53303 TL-01 adjustable top arm set
• 53301 TL-01 stainless steel suspension shaft set
• 53300 TL-01 turnbuckle tie-rod set
• 53295 Tire inner foam
• 53292 TL-01 ball bearing set
• 53280 TA03 super low friction damper set (4pc.)
• 53267 TA03 ball differential
• 53163 On-road tuned springtime set
• 53162 4mm anodized aluminum flanged lock peanuts (black)
• 53161 4mm anodized aluminum flanged lock nuts (gold)
• 53160 4mm anodized aluminum flanged lock peanuts (red)
• 53159 4mm anodized aluminum flanged lock nuts (blue)
• 53144 Touring & rally car bushing & ball connector set
• 53141 4WD touring & rally car lightweight master pins
• 53095 3x10mm titanium tapping screw (10pc.)
• 53056 Pin type wheel adapter
• 50357 22T, 23T AV pinion gear set (only the 23T gear in this set works with all the TL-01)
• 50356 20T, 21T AV pinion gear set (only the 21T gear is compatible aided by the TL-01)
