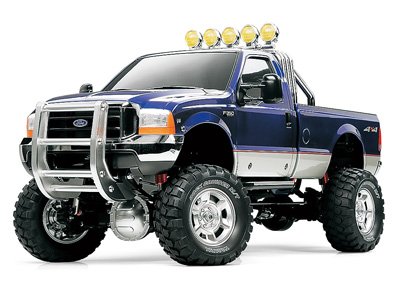

Description of Tamiya 58372 Electric R/C set up kit of just one of the most representative US pick-up trucks, the Ford F-350. The model features practical ladder framework, 3-speed transmission and shaft drive 4WD system. Highly detailed injection molded human anatomy and large diameter tires boost the stylish high-ground-clearance look. Initial marking stickers enhance the truck&39;s general realism.
METAL & METAL PLATED PARTS
- An abundance of metal components such as for instance ladder framework, under guard, front guard, leaf springs and aluminum friction dampers are included.
- Roll bar, road light, front grille, front/rear bumper, side-step, diff guard, tires and muffler function metal-plated finish.
ADD LED LIGHTS (AVAILABLE SEPERATELY) Usage Multi-Function Unit to depict working headlights, tail lights and roll club lights for even more incredible realism.
MULTI FUNCTION DEVICE This Multi Function Product brings more enjoyment to the procedure regarding the R/C Ford F350. Featuring realistic sound files recorded from real vehicles, controllable Light-emitting Diode lights along with other motion effects, this product will greatly expand the potential of one's Ford F350.
LADDER FRAME Durable and practical ladder frame comprises of steel channel and resin cross user.
PROPELLER SHAFTS F/R propeller shafts feature universal joint to effortlessly transfer energy regardless if suspension system is moving up and down.
QUICK BATTERY HOLDER
- Battery held in low position for exceptional fat stability and security.
- Comfortable access owner enables running battery pack to be exchanged without getting rid of body.
4WS STEERING ROD
- 4 wheel steering is enabled with the addition of kit supplied rear axle tension rod.
- 4-wheel steering enables even tighter turning radius, perfect when utilizing truck indoors or in confined room.
WHEELS & TIRES
- Newly designed monster truck tires feature lug pattern suited for driving on rough surfaces.
- Apply concrete to wheels and tires when operating on rough terrain.
- Exhausted wheel hubs can be changed with Pin kind Wheel Adapter.
3-SPEED TRANSMISSION
- Newly designed 3-speed transmission provides
smooth low rate operating, and allows gear
changing while operating.
Low gear > 2nd gear > Top gear
1:64.39 > 1:35.20 > 1:21.14
|
SLIPPER CLUTCH
- Includes slipper clutch as standard component to safeguard
gears during tough off-road running.
|
DIFFERENTIAL GEAR Durable resin gear case with integrated die-cast differential gear.
DIFFERENTIAL LOCK
- Differential lock, required for driving on rough roads, could be effortlessly enabled simply by the removal of F/R diff situation covers and removing screw pins.
- Making use of differential lock, drive power is transmitted even when tires on a single side are not grounded.
LEAF SPRING SUSPENSION F/R suspension system with friction dampers allows tension modification by altering wide range of leaf springs.
FRICTION DAMPERS
- Features red anodized aluminum cylinder. Damping impact is modified through the use of separately available Friction Damper Grease and including o-rings. Select according to ground conditions and leaf spring quantity.
- Standard: normal running Default settings.
- Soft: low-speed, high hold operating Use 2 leaf springs and adjust tension utilizing damper oil (soft) 53174.
- Hard: stable and high-speed operating Use 5 leaf springs and use damper grease (medium) 53175 or (difficult) 53176.
BEARINGS
- Kit includes a complete of 42pcs of Metal bearings(bushings) (35pcs x 1150, 4pcs x 1260, 2pcs x 850 size steel and 1pc of 1050 size ball bearings).
- Steel bearings require regular application of oil to keep performance. Separately available ball bearings do not require this therapy, as they are strongly suggested.
| Needed: | Size: | Item : | Packed in: |
| 35 | 1150 | 53008 | 4 |
| 4 | 1260 | 53065 | 2 |
| 2 | 850 | 53030 | 4 |
ENGINE
- This kit was created to be used just with pre-supplied kind 540 motor and pinion gear.
REQUIRED ITEMS (NOT INCLUDED) RADIO CONTROL UNIT TRANSMITTER, RECEIVER, ELECTRONIC SPEED CONTROLLER (ESC), STEERING SERVO & SHIFT SERVO
- Needs 4-channel, 2-servo electronic proportional R/C product with electronic speed controller with variable forward and reverse function.
- Use of Futaba Attack 4WD (4ch) or stick type transmitter with slide trim is recommended to perform gear modification while operating. The Airtronics VG400/600 model radios may also be capable because they feature slide trim and self neutral control sticks.
- 2ch R/C device may not be utilized as it cannot shift gears.
- PCM type receiver might not be used as it may cause radio interference when working with with separately available Multi Function Product.
ELECTRONIC SPEED CONTROLLER- Use high power kind ESC with reverse function (optimum constant up-to-date: forward 120A, reverse 60A, FET regulation).
- A high-spec ESC is very recommended when running on rough landscapes.
- TEU-302BK Electronic Speed Controller (PRODUCT 45028) is preferred.
- Perhaps not for use with TEU-101BK Electronic Speed Controller.
SERVO- While standard type steering servo is sufficient, high torque servo is preferred when operating on rough surface.
- Utilization of ITEM 50473 High Torque Servo Saver White or ITEM 51000 Tall Torque Servo Saver Ebony will further improve efficacy.
- Don't use tiny, big or high-speed servo.
BATTERIES- Tamiya 7.2V running battery pack
- Eight R6/AA/UM3 batteries for transmitter.
Battery and Radio information 1. Any Tamiya 7.2V battery pack enables you to power the vehicle. Various milliampere-hour (mAh) values may impact the quantity of running time enabled by the battery. For example, 7.2V 1400SP battery pack should usually allow ten to fifteen moments of operating time. However, take note that actual operating time may decrease due to extended full throttle along with other high energy running. 2. the next 4-channel R/C device (self-neutral stick type transmitter/receiver) is advised for maximum procedure: FUTABA ATTACK 4WD (T4VWD/FP-R114H) The Airtronics VG400/600 model radios may also be capable because they function slip trim and self neutral control sticks. Know that using an R/C unit without a self-neutral system may increase difficulty of operation. Without self-neutraling stations (springtime loaded sticks) the operator is left to focus the throttle and steering minus the help of self-centering springs, which makes driving the vehicle harder than it requires become. 4-channel wheel-type transmitters may be used with ITEM 58372, but will not be able to be utilized with kit built with Multi-Function Unit (To be released). PPM receivers are suitable for usage with this kit. PCM receivers are not appropriate for kit loaded with Multi-Function Unit. Other makers&39; radio control devices of 4 or even more stations can be utilized, but may not recognize the maximum functioning of this kit. Recommended use of similar R/C device as used in combination with ITEM 56511 Tractor Truck Multi-Function Control
Description of Tamiya53957
Released in 2006, the 1/10 R/C 4x4 3-Speed High-Lift was exceptionally well-received by fans worldwide. Aided by the release of this brand new Multi-Function device, Tamiya kicks up the realism another notch with light, sound, and vibration results all controllable via a 4-channel transmitter (sold separately) in order to make all the 3-Speed Highlifts more impressive!!!
LIGHT RESULTS
10 types of high-brightness LEDs (including optional LEDs) for a total of up to 33 lights may be managed to depict different realistic light actions while driving. They could additionally light in pre-set habits during Demo Mode for a brilliant rack display.
| Headlight 1 | Headlight 2 | High Beam |
| Fog Lamp 1 | Fog Lamp 2 | Fog Lamp 3 |
| Fog Lamp 4 | Fog Lamp 5 | Auxiliary Lights (Front Side) |
| Auxiliary Lights (Rear) | Turn Signal (Front Right) | Turn Signal (Front Kept) |
| Change Signal (Rear Appropriate) | Change Signal (Rear Kept) | Reverse Lamp |
| Brake Lamp | Flash Lamp | |
SOUND EFFECTS
Onboard presenter unit can give off a complete of 24 different sound effects (including optional sounds) that have been all digitally recorded from actual cars, such as the working noises for both a large imposing V8 motor and a spunky small-displacement turbo motor.
| Motor Creating 1 | Idling 1 | Operating 1 |
| Engine Avoid 1 | Up-shifting 1 | Down-shifting 1 |
| Horn 1 | Motor Starting 2 | Idling 2 |
| Operating 2 | Motor Avoid 2 | Up-shifting 2 |
| Down-shifting 2 | Horn 2 | Gear Changing |
| Turn Signal | Timer 1 | Timer 2 |
| Timer 3 | Security | |
SPECIAL OPERATIONS Around 16 different actions could be controlled via a 4-channel transmitter (sold individually) to offer the sense of driving a real pick-up vehicle.
| Steering Control | Throttle Control | Horn Procedure |
| Tall Beam Procedure | Gear Moving Procedure | Turn Signal Operation |
| Hazard Lamp Operation | Headlight Procedure | Brake Procedure |
| Motor Start/Stop Operation | | |
MORE FEATURES
- Vibration Function device recreates rumble movements together with engine sounds.
- ESC allows realistic low-speed running.
- Speaker Unit not only emits the sound effects mentioned above, in addition has an input terminal to allow reference to outside sound sources such as for example MP3 and CD players for music playback.
- 3 convenient modes of procedure: R/C mode with Multi-Function effects down, R/C mode with Multi-Function effects on (4 varieties), and Demo Mode for static display with light and noise results only (4 varieties).
- Detailed and user-friendly set-up guide and tutorials to aid users with appropriate operation of most the MFC-02 features (please understand next page for some preliminary test diagrams).
SEPARATELY REQUIRED ITEMS
- 4-channel self-neutral stick-type transmitter built with slip trim and self-neutral feature for maximum performance. (Futaba Attack 4WD recommended)
Tamiya suggests the Futaba Attack 4WD (T4VWD/FP-R114H) because it has a self- basic function. Other 4-channel transmitters produced by Futaba, JR Propo, and Acoms can be used using the MFC-02, but operations may not be since smooth because they may lack the self-neutral function and connectors might not be suitable. As for transmitters from other makers, while it can be feasible to utilize them, please note there may be instances where they could never be in a position to operate all of the MFC-02&39;s functions. - 4-channel receiver.
- 2 servos.
SPECIAL NOTES
- Don't use together with ITEM 53909 TLU-01 or ITEM 53937 TLU-02.
- MFC-02 is compatible using the Type 540 engine just. Please avoid installing other engines.
- MFC-02 may not be operated with 2-channel or 3-channel transmitters/receivers.
- MFC-02 just isn't compatible with PCM kind receivers, multi-channel receivers, and older receivers produced by Sanwa (identifiable by their black cases).
- Not suitable for 2.4ghz systems or other people which have digital trim
