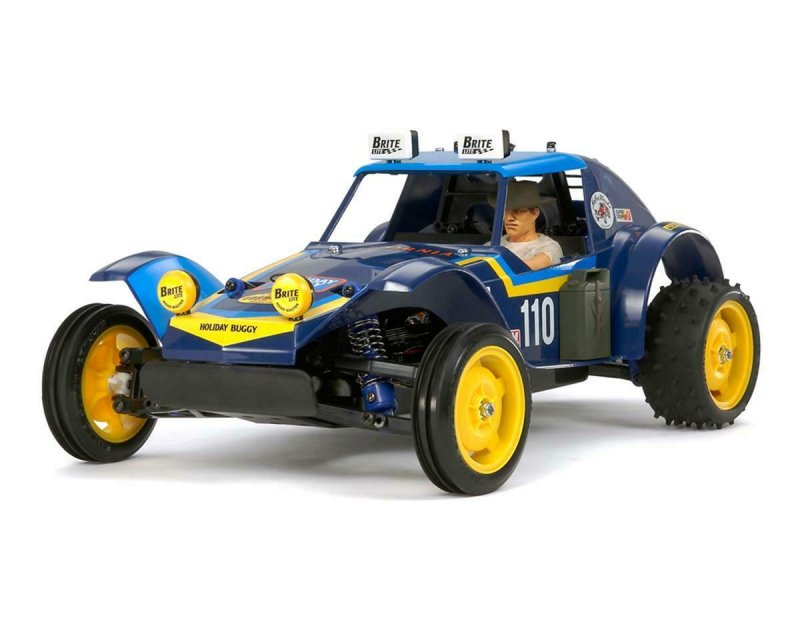

Tamiya 58470-60A - 1/10 Holiday Buggy (2010) DT-02 Chassis (w/o ESC) 田宮遙控模型越野車套件 雙星孖星  [58470-60A]

•
  The Holiday Buggy now comes mounted on the DT-02 framework which includes its battery pack packed in the heart of the bath tub frame and has now exemplary handling performance also on rough surfaces.

Features:

• 1/10 R/C assembly kit regarding the special edition Holiday Buggy.
• Features ribbed front and spike rear tires once the original.
• Newly created full-body sticker sheet included.
• Blue colored durable polyethylene (PE) human body included.
• Comes mounted on the 2WD DT-02 chassis.
• Pre-painted motorist figure included.

Specs:

• Length: 390mm
• Width: 240mm
• Height: 164mm
• Wheelbase: 260mm
• Ground Clearance: 26mm
• Weight: 1250g
• Type 380 engine Included
• Rear Wheel Drive 2WD
• Tire Width/Diameter: F=22/81mm R=39/86mm
• Tread: F/R=217mm/208mm
• 3-Bevel Differential Gea
• 2-Piece Steering Tie-Rod
• F/R Double Wishbone Suspension
• Gear Ratio=15.77:1
• Speed Controller: electronic rate controller(perhaps not included)

Note:

Whenever setting up a normal sized motor such as for instance a 540, the next parts are required:

• 17T Pinion Gear
• 3mm Grub Screw
• Motor Plate
• Electronic Speed Controller
