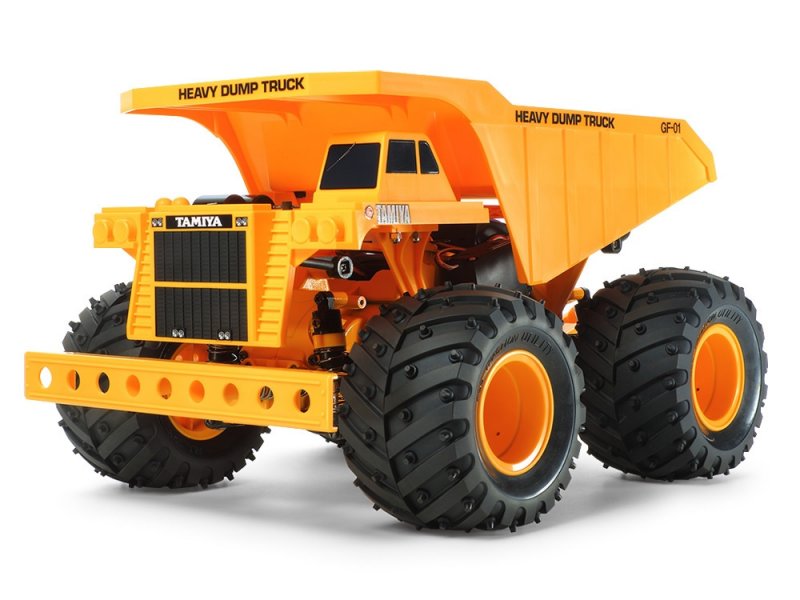

Tamiya 58622-60A - 1/24 Heavy Dump Truck (GF-01) (w/o ESC) 田宮遙控模型農夫車套件 雙星孖星  [58622-60A]

• Tamiya 58622 Heavy Dump Track GF-01 chassis
• Reproduce the “heavy dump” active in large-scale construction site realistic!
• Big tire fitted, off-road appeal of 4 x4 unique. Anywhere you run around in comical cheerfully. An ultra-large automobiles involved in large-scale construction internet sites such as for example mines and dam construction had been modeled “heavy dump”. An exceptional design into the dynamic that aside from a dump truck traveling in the general road, high power feeling of scale had been additionally reproduced in enough ABS resin body. Cab (cab) plus the vessel (the bed) is the fact that additionally it is possible to show in state as split components, which raised the vessel is also an attribute associated with dump. The chassis gather a high appeal in the comical and crazy ride is used “GF-01 framework.” Molding color of this framework not just the body had been additionally a yellow image of much equipment, it will likely be fun to appear finish. The tire built with a large-diameter monster increase tires, design additionally went also crazy, it's appealing is jammed model of pastime RC unique.
• Length: about 350 mm
• overall width: about 270 mm
• Height: about 210mm four-wheel drive GF-01 framework, loaded with a huge tire in
• Square setup equipped with a motor in the middle of the lightly energy adequate monocoque frame, front side and rear in gear GF-01 chassis that adopted kit drive 4WD for transmitting capacity to the wheels. Nearly corresponding to “square” setup may be the ratio for the wheel base and tread also features. The apparatus situation regarding the frame one-piece, closed to shut out of the sand and pebbles. You create a smooth cornering and a built-in differential gear. Suspension dual wishbone 4-wheel independent built with friction damper. Sets the steering servo to the chassis left part, it shows the maneuvering characteristics without the habit by isometric 2-piece tie rod.
• The image is a prototype.

Specifications:

• Scale: 1/24
• Construction kind: Assembly kit
• Terrain use: Multi-Purpose
• Drive-train 4WD
• Drive kind: Gearbox
• Drive line: puppy bone
• Differential type: Gear
• Suspension: Fully independent dual wishbone
• Steering procedure: Bell-crank
• Shock damper: Friction damper
• Shock damper material: Plastic
• Tire kind: Rubber
• Tire tread: Lug/pin-spike
• Body product: ABS Plastic
• Chassis material: Plastic
• Electronic Speed Control (ESC): NOT INCLUDED
• ESC model: TBLE-02S
• LED Light buckets: No
• LED lights: No
• Motor: 540-brushed type
• Bearings: Plastic bushing
• Adjustable camber: Fixed
• Adjustable toe angles: Front only
• Adjustable ground clearance: Fixed
• Adjustable gear ratio: Fixed
• Adjustable wheelbase: Fixed
• Adjustable track width: Fixed
• Adjustable surprise angle: Fixed
• Special feature 1: Length: 350mm, Width: 270mm, Height: 210mm
• Special feature 2: The practical injection-molded resin human body features split cab and rear sleep parts.
• Special function 3: Alternate rear bed between flat and raised jobs by changing the career associated with 2 remains and snap pins in the human body mounts. Note: It is not advised to place things inside rear bed, or drive the model along with it elevated.
• Special function 4: Chassis and deep rim wheel components are molded in yellow for an authentic look.
• Special feature 5: The 4WD GF-01 chassis provides an excellent sense of big scale, and utilizes front and back differentials in sealed gearboxes integrated within the framework.
• Special feature 6: 4-wheel double wishbone suspension system uses friction dampers.
• Special feature 7: The &39;square&39; setup chassis uses comparable tread (194mm) and wheelbase (174mm) lengths.
• Special feature 8: Torque-tuned motor is roofed.
• Special feature 9: includes 115mm-diameter tires.
• Requires A: 2-channel radio gear & ESC
• Requires B: 7.2 battery pack & charger
