產品說明

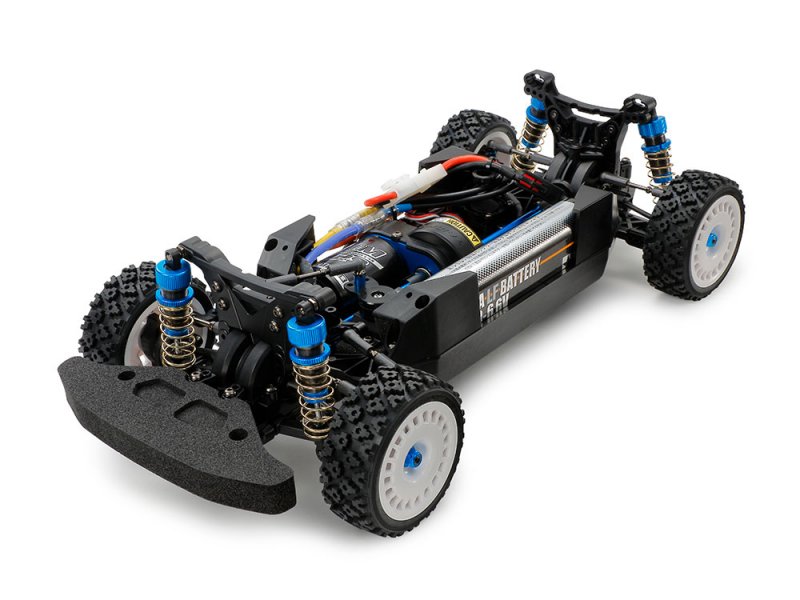

The all-new XV-02 Pro chassis kit is Tamiya’s second modern age, function built, 4WD Rally device! The XV-01 Pro incorporated a 4WD gear drive system with clever positioning for the RC electronic elements with debris security compartments. The all-new XV-02 Pro takes its 4WD drivetrain into a new way using a shaft-driven system with front mid-ship engine positioning that includes equal length front side and back propeller shafts!

XV-02 chassis instantly:
• is sold with two 39T differential gears and one 40T differential gear for modification of front side and back drive stability. (Over-Drive and Under-Drive Adjustment)
• Use 39T gear (w/15T gear) in the front side and 40T gear (w/15T gear) regarding back for drive stability bias to front and vice-versa for drive balance bias to rear.
• Features newly-designed components such as gears, tub framework chassis, chassis address, caster obstructs featuring 6-degree caster angle (XV-01 chassis: 10-degree caster angle), and bumpers with skid angles to cut back surface contact.
• The engine mount, propeller shafts, input and center shafts, and urethane bumpers have actually new steel parts.
• Features a longitudinal battery power place within the center-left for maximum stability.
• Long aluminum dampers are employed at front side and rear.
• A polycarbonate chassis address with wheel well liners help prevent dirt and dirt from getting inside.
• Suspension arms and front uprights are based on the XV-01 framework kit.
• is sold with rally block tires and tires.
• needs: Tamiya Rally Body, 2-channel radio, servo, ESC, 540-type engine, and 7.2-7.4volt battery pack with compatible charger.

Specifications

● Chassis length 368mm (excluding human body)

● Chassis width 180mm

● Wheel base 257mm

● Frame = bath tub type

● Drive system = front midship motor / shaft drive 4WD

● Diff gear = oil-filled gear differential for both front side and back

● Steering = 3-split tie pole kind

● Suspension = 4-wheel double wishbone

● Damper = Aluminum cylinder long oil damper (blue cap specification)

● Gear ratio = 9.58: 1 while using the 19T pinion included in the kit (10.71: 1 to 6.28: 1 in combination with the individually sold pinions (Up to 14 forms of gear ratios are selected)

Specification:

Adjustable Gear Ratio : Yes
Bearings : Includes complete ball bearings
Chassis Material : FRP Fiberglass Reinforced Plastic
Chassis Type : XV-02
Construction Type : Assembly Kit
Differential Type : Gear-Type (Oil-Filled)
Drive kind : 4WD
Required to perform : 2-channel radio, steering servo, ESC, 540-size engine, 7.2-7.4volt battery & battery charger, Rally Body, and Tamiya PS paint.
Scale : 1/10
Shock Damper : CVA Oil Filled
Suspension : Fully Independent Double Wishbone
Terrain utilize : Multi-Purpose
