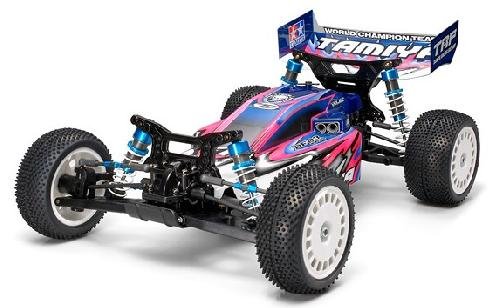

Tamiya 84370 - 1/10 RC DF-03 MS Chassis Kit 田宮遙控模型越野車套件 雙星孖星  [84370]

The mid-range shaft-driven 4WD buggy DF-03 framework originated from racing information, and also the DF-03 MS kit took its capabilities one action further by fitting a range of choice components. Usage of a slipper clutch, assembly universal shaft and center one-way set boost drivetrain efficiency and offer razor-sharp managing, while 4-wheel double wishbone suspension system allows a range of settings.

This limited version buggy features a chassis which full of performance improving parts and a Dark Impact human body shell with unique markings created by TRF motorist Satoshi Maezumi.

The following Hop-Up-Options are included:

• 53791 DF-02 Assembly Universal Shaft
• 53924 DF-03 Heat Sink Bar Set
• 53925 DF-03 Slipper Clutch Set
• 53926 DF-03 Aluminum Damper Set
• 53931 DF-03 Center One-Way Set
• 53940 DF-03 Hard Turnbuckle Shaft Set
• 53941 DF-03 Aluminum Turnbuckle Steering Rod
• 53948 DF-03 Aluminum One-Piece Propeller Cup Joint
• 53949 DF-03 Lightweight Battery Stopper Pin
• 53984 Buggy Racing Wing
• 51000 Hi-Torque Servo Saver (Ebony)

Specification

• Scale : 1/10
• Construction type : construction kit
• Terrain usage : off-road
• Drive-train : 4WD
• Drive type : shaft
• Drive line : dog bone
• Differential type : ball pressure dish
• Suspension : completely separate dual wishbone
• Steering apparatus : bell-crank
• Shock damper : oil-filled damper
• Shock damper material : aluminum
• Tire kind : not included
• Tire tread : n/a
• Body product : Polycarbonate
• Chassis product : synthetic
• Electronic Speed Control (ESC) : maybe not included
• ESC model : n/a
• LED Light buckets : no
• Light-emitting Diode lights : no
• Engine : not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe angles : front side only
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable surprise angle : yes
• Special function 1 : Length:388mm, Width: 250mm , Height: 152mm, Wheelbase:272mm, Tread:217mm (front side) & 203mm (backside)
• Unique feature 2 : 2 types of wing and marking stickers are included in the kit.
• Requires A : 7.2 battery pack & charger
• Requires B : 2-channel radio gear, ESC, engine
• Needs C : polycarbonate paint
• Needs D : tires
