Tamiya 84375 - 1/10 RC XV-01 Chassis Kit Long Damper Spec 田宮遙控模型越野車套件 雙星孖星  [84375]

This restricted edition version of the versatile XV-01 framework is initiated to make use of long dampers and a much better off-road driving experience, while still keeping exactly the same base due to the fact original XV-01.

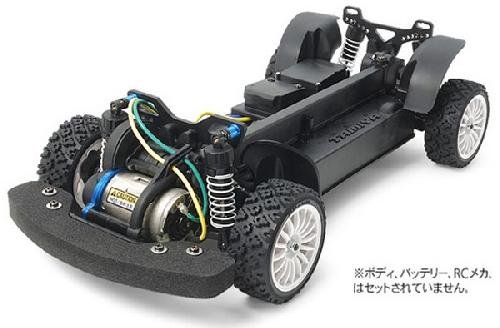

The 4WD XV-01 framework offers powerful R/C rally driving on both tarmac and gravel areas. It features a front-motor, belt-driven 4WD layout with front and back enclosed gearboxes equipped with gear differential units. The box-like primary framework includes covers and wheel well liners to produce superb protection against dirt and debris. The 4-wheel double wishbone suspension guarantees plenty of suspension swing and ground clearance and it is matched with Rally Block Tires on reproduction tires for realistic maneuvering

• Scale : 1/10
• Construction type : construction kit
• Terrain use : multi-purpose
• Drive-train : 4WD
• Drive kind : Dual-Drive
• Drive line : dog bone
• Differential type : sealed oil-filled gear
• Suspension : completely separate double wishbone
• Steering apparatus : bell-crank
• Shock damper : oil-filled damper
• Shock damper product : plastic
• Tire kind : plastic
• Tire tread : rally block
• Body product : maybe not included
• Chassis product : plastic
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : 540-brushed type
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe angles : front and rear
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable surprise angle : yes
• Special function 1 : Wheelbase: 257mm
• Special function 2 : The chassis is fitted with newly-designed front and rear damper remains to allow maximum exploitation for the extensive stroke provided by the CVA mini oil dampers.
• Special function 3 : Suspension arm parts are designed to let the car to perform optimally utilizing ground approval of 10mm or even more, making it ideally-suited to off road running.
• Special feature 4 : The XV-01 chassis utilizes a front-motor, belt-driven 4WD layout because of the drive gear, battery and R/C equipment protected from dirt and debris by covers.
• Special feature 5 : appropriate for Lancia Delta Integrale, Subaru Impreza WRX STI Team Arai, Subaru Impreza WRC 2008 or Mitsubishi Lancer Evo. X systems (sold separately).
• Requires A : 2-channel radio gear & electronic rate control
• Requires B : 7.2 battery & charger
• Requires C : Body set
• Requires D : polycarbonate paint
