Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit 田宮遙控模型油動車套件 雙星孖星  [84390]

Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit
價格:
HKD$0.00
牌子:
Tamiya
型號:
84390
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - On-Road - Touring Cars - Nitro Powered
類別中嘗試尋找類似的產品
填寫評論
alt="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit" title="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit"
alt="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit" title="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit"
alt="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit" title="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit"
alt="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit" title="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit"
alt="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit" title="Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit"

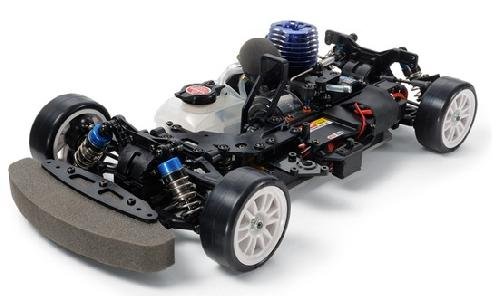

This kit views the TG10-Mk.2 glow-engine R/C chassis fitted with a whole new engine!

The FS-12FZ Motor

The Tamiya FS-12FZ engine has an ability of 2.1cc and features tapered sliding carburetor, plus a competent heat sink for heat dissipation. It includes an excellent combination of linear torque and high output, while being simple to setup and maintain. It features a 2-speed transmission.


Features:


  • The 2.1cc Tamiya FS-12FZ motor is fitted with a 2-speed transmission, and could be started with minimal hassle using the handily-sized recoil beginner product.
  • Tapered sliding carburetor ensures your framework enjoys linear torque without compromising the high production needed for hi-speed circuits.
  • A durable polycarbonate address is in place to safeguard the spur gears untilized within the 2-speed transmission.
  • The slimline TM-8 exhaust drastically cuts the probability of experience of the body shell.
  • 4-wheel double wishbone suspension utilizes ball connectors. Oil dampers feature aluminum cylinders.

Specifications:


  • Exemplary security is given by a hardcore double-deck framework with 3mm-thick duralumin lower, and resin upper decks.
  • The powerful 2.1cc FS-12FZ glow motor makes this framework excellently-suited to high-speed circuits, while nevertheless providing linear torque.
  • Length: 377mm
  • Wheelbase: 257mm
  • Double Deck Chassis (3mm-Thick Aluminum Lower & 3mm-Thick Reinforced Nylon Resin Upper Decks)
  • Shaft-Driven 4WD
  • F/R Tread 172-176mm (adjustable)
  • Differentials: Front 4-Bevel, Back 2-Bevel
  • Front & Back Fluorine-Coated Aluminum Dampers
  • Gear Ratio = 7.02:1 (1st Gear), 5.42:1 (2nd Gear)
  • TM-8 Exhaust
  • FS-12FZ Engine (2.1cc)
  • 75cc Fuel Tank

Separately Required Products:

  • 2-channel R/C system
  • Glow Engine gas (nitromethane content: 16-20%)
  • Gas Pump
  • Plug Heater
  • Body
  • Wheels
