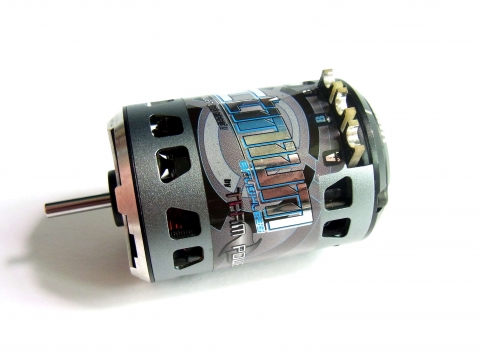

Team Powers Actinium Brushless Sensored Motor  [TP-BLM-XXX100ACT]

• Design Specification: Based on IFMAR/ROAR/EFRA/BRCA

• engine Dimensions (Diameter x Length) 35.8mm x 51mm

• Shaft Diameter: 3.17mm

• Magnet proportions (Diameter x Length): 12.5mm x 24mm(3.5turn-9.5turn), 12.3mm x 24mm(10.5turn-17.5turn)

• Variable End bell with changing the production power and torque associated with engine

• body weight: 165g (5g lighter versus old variation)

• suggested RC Model automobile: 1:10 model car, Buggy, MINI Car

• Available Turns: 4T, 4.5T, 5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T

Improved features based on Plutonium V1.0 motor:

• Have option 12.5mm roar spec rotor

• New type neodymium sintered rotor and venting convection system that may lower the temperature by 5~10'C

• Possible for installation. Just screw away 3pcs screw and sign up for the rotor straight without the need to dissembly the finish bell and sensor board

• utilize low resistane and thicker wire for wiring that will come out more power
