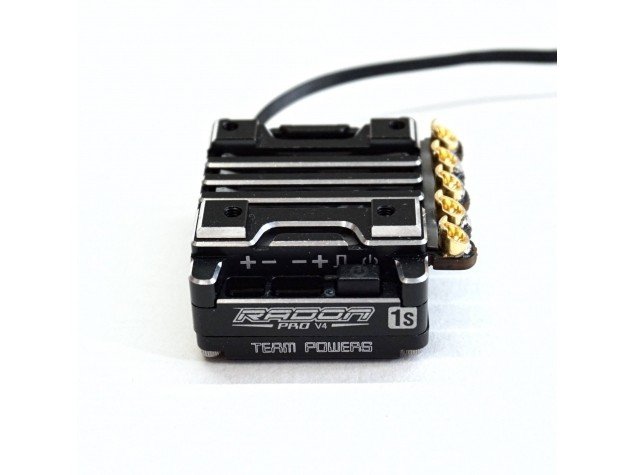

Team Powers Radon professional V4 1S (200A) Speed Control (included USB unit) (TP-Radon-ProV4-1S)
Hardware:
* Upgrade form of greater ampere FET to low the hardware interior resistance with more output energy. Besides, its lower IR can reduce the speed control working heat by around 6percent
* with increased available line area to dissipate more heat out in term to reduce the speed control heat by additional 6per cent
* The speed control casing just has 17mm height with 2mm lower that having better reduced gravity
* Extra ~10percent weight lighter
* help Ch3/Ch4 Aux Input sign to manage different item function values
* New pcb layout design with better security and reliablility
Software:
* With Ch3/Ch4 Aux function to manage among the below pre-defined control product function
(age.g. IP-Limiter, Throttle Rate, RPM Lock, Initial Brake, Drag Brake, Brake Force, I-BK-RSP, Brake Rate,
Increase Timing, Boost Trig LVL, Increase Trig Speed, Turbo Timing, Turbo Delay, Turbo On Speed)
* Optimize the braking system function with better linearity
Requirements:
. Controls: Forward/Brake/Reverse
. Input Voltage: 1S lipo
. BEC: 6V/7.4V selection/max ~3A
. Engine Limit: 3.5T or over
. Max present: ~200A per phase
. Size: ~38x30x17mm
. Body weight: ~37g (not consist of wiring and fan)
Features:
. Ultra-smooth, Precise Throttle and Braking Control
. Suitable for Sensored/Sensorless Brushless Motors
. Information review Capability(RPM, minimal voltage and ESC temperature)
. HotWire Computer Interface for Advanced Programming and Updating
. Easily Programming through Program card(maybe not within the package)
. Integrated one touch On/Off switch with Light-emitting Diode
. Bulit-in Low voltage cut-off, Overheat protection and signal loss protection
