Team Powers XPS Pro Speed Control System V1.1 -140A (with setting card included) [TP-XPS/Pro-v1_1]

價格:

HKD$993.40

牌子:

Team Powers

型號:

TP-XPS/Pro-v1_1

售罄

請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.

填寫評論

Team Powers XPS Pro Speed Control(140A) + Setting Card

Item No

TP-XPS/Pro-v1_1

Features:

Help along with kinds of sensored/sensorless brushless engines in RC model 1/10th, 1/12th vehicle & Truck
Help Operating Mode: Forward with brake, Forward/Reverse, Forward/Reverse with Braking System
Manual/Factory running profile setting. For factory running profile, it includes 9 degree for modify battle and 4 amounts LCTS (linear control timing system) for competition tournaments
utilize the pocket-size system card to plan the controller settings
Several protection functions: Low voltage cut-off protection, Over heat security, Throttle sign loss security
Extra smaller size aluminum casing for air conditioning
Extra battery output adaptor linking to your motor cooling fan

Techincal Specifications:

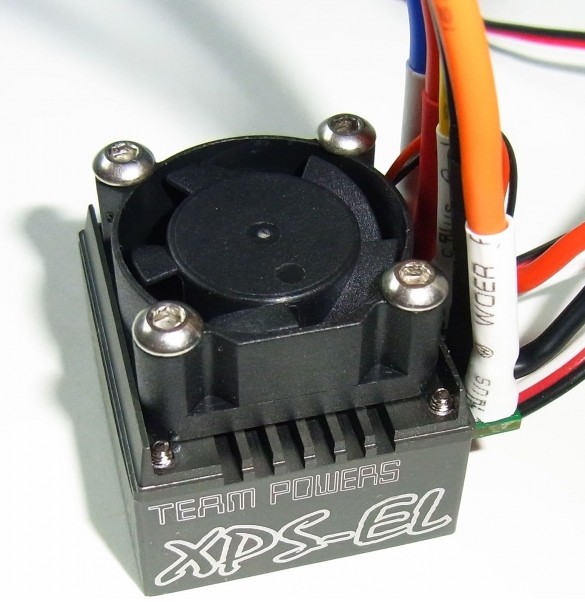

Model:		XPS- Pro	XPS-Sport	XPS-EL
Continuous present:		140A	70A	35A
Burst Current (10sec):		720A	400A	160A
Battery Input:	3.7V LiPo	2 cells	2 cells	2 cells
Battery Input:	1.2V NiMh/NiCd	4-6 cells	4-6 cells	4-6 cells
BEC Production:		Linear 6V/2A	Linear 6V/2A	Linear 6V/2A
Body weight (perhaps not included wiring& fan)		~42g	~41g	~40g
Dimension(L x W x H) mm (range from the fan installation to your ESC)		~32 x 30 x 28	~32 x 30 x 28	~32 x 30 x 28
Motor restriction with 2cell x 3.7V Lipo Assume motor at 0 level timing		4Turn or over	6.5 Turn or higher	9.5 Turn or over

Setting Card Program Items includes:
