Packing Includes:
SLE016
Chassis Plate-1pc
GSLE0126A
Aluminum 7075-T6 repairing strip-1pc
Carbon fiber battery panel-1pc
Square buckle Velcro-2pcs
Velcro-1pc
Servo mount-1pc
Flat mind Screw 4*10-5pcs
Flat mind Screw 3*10-6pcs
Flat Head Screw 3*6-1pc
Round Head Screw 3x12-4pcs
SLE038AN
Differential & engine mount-6pcs
Stainless metal flat head screw 4x12-5pcs
Stainless steel flat head screw 3x14-2pcs
Stainless metal flat mind screw 3x8-4pcs
Stainless metal round head screw 4x12-2pcs
Stainless steel round head screw 4x10-4pcs
Stainless metal round head screw 3x8-2pcs
Stainless metal cap head screws 4*16-2pcs
Stainless metal limit mind screws 3*12-1pc
Stainless metal washer 1*4*8-2pcs
Stainless metal washer 1*3*6-1pc
(Some screws are installed on products)
Original Name / role No:
9522+9626+9584
Part Location:
Below forward, center, back chassis+battery+Back of center differential
Product major function & use:
Increase the tone of chassis, impact-resistant and wear-resistant, and fortify the human anatomy structure
Fixed battery
Stabilize center differential and motor

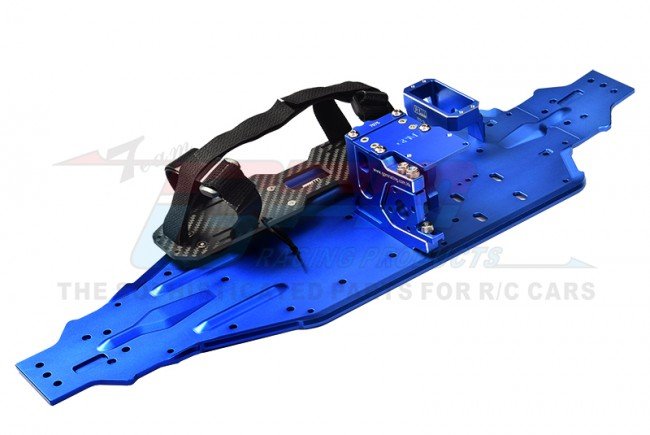

1. The material is upgraded to aluminum 7075-T6, the chassis is thickened from 3.2mm to 4.0mm, rendering it more sturdy.
2. Upgrade the reinforced sides to 5mm depth and adding the groove among to help reduce bending.
3. There was a reserved position for the extended engine regarding the electric seat. It indicates that GPM also create a motor mount because of this extended motor later.
4. GPM aluminum 7075-T6 servo mount and battery pack compartment integrated, the battery pack compartment retains the initial quick-release voltage plate, which is convenient for disassembly and installing the servo mount.
5. The repairing strip of carbon fibre battery panel at the bottom is made of aluminum 7075-T6, which improves the tone of this servo mount while the battery pack compartment.
6. The open design with Velcro works with with various sizes of batteries, as well as the adjustment is more flexible, and so the battery just isn't simple to fall off during usage.
7. The opposite fast release version works with aided by the installation of 4985. 1717 and other motors, can be simply powered by 8S.
8. The convenient quick release motor base is redeveloped by GPM to effectively prevent the displacement regarding the motor.
9. The motor gap is reserved for 3mm/4mm, which can be compatible with the installation of multiple kinds of motors.
Note: This system requires to utilize with ARRMA AR320422 receiver package.
Suitable Model:
TRAXXAS-1/8 4WD SLEDGE MONSTER TRUCK-95076-4
