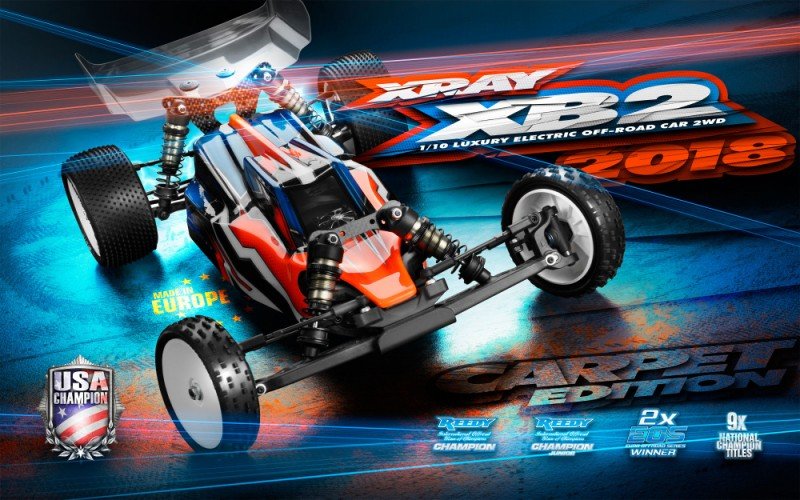

XRAY 320004 XB2 2018 - Carpet Edition   [XR-320004]

XRAY 320004 XB2 2018 - Carpet Edition
價格:
HKD$3,247.70
牌子:
XRAY
型號:
XR-320004
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - Off-Road - Buggy - Electric Powered
類別中嘗試尋找類似的產品
填寫評論
alt="XRAY 320004 XB2 2018 - Carpet Edition" title="XRAY 320004 XB2 2018 - Carpet Edition"
alt="XRAY 320004 XB2 2018 - Carpet Edition" title="XRAY 320004 XB2 2018 - Carpet Edition"
alt="XRAY 320004 XB2 2018 - Carpet Edition" title="XRAY 320004 XB2 2018 - Carpet Edition"
alt="XRAY 320004 XB2 2018 - Carpet Edition" title="XRAY 320004 XB2 2018 - Carpet Edition"
alt="XRAY 320004 XB2 2018 - Carpet Edition" title="XRAY 320004 XB2 2018 - Carpet Edition"
alt="XRAY 320004 XB2 2018 - Carpet Edition" title="XRAY 320004 XB2 2018 - Carpet Edition"
alt="XRAY 320004 XB2 2018 - Carpet Edition" title="XRAY 320004 XB2 2018 - Carpet Edition"
Dimensions
  • Class: 1/10 electric 2WD off-road car
  • Width: Adjustable 245-250 mm
  • Length: 274mm (394 mm with wing)
  • Wheelbase: Adjustable 282-285 mm
  • Weight: 835 g
  • Ready-to-run fat: 1520 g


Chassis
  • Chassis: CNC-machined Swiss 7075 T6 aluminum 2.5 mm
  • Front top deck: tough composite


Suspension
  • Suspension: Adjustable suspension system via incorporated Suspension System I.S.S.
  • Rear suspension system: Lower arm with adjustable upper camber link
  • Front suspension system: Lower arm with adjustable top camber website link with adjustable caster 0°, 2.5° and 5°
  • Rear upright: Composite 0° toe-in with twin supply mounting and 7 roll center positions
  • Shocks: Membrane free surprise absorbers with Delrin pistons
  • Shock towers: Front & rear machined 4.0mm & 3.5 mm laminated carbon graphite with multiple surprise mounting


Drivetrain
  • Type: 2WD
  • Primary: Pinion / spur
  • Drive shafts: HUDY Spring Steel™ CVD drive shafts
  • Differential: Sealed gear differential, 6 gear, silicone-filled
  • Slipper clutch: Adjustable 3-Pad
  • Bearings: Rubber-sealed high-speed bearings


Gearing
  • Primary ratio: 1:2.65
  • Gear Box gear: 36T
  • Differential pulley: 53T
  • Spur gear: 84T (75T, 78T, 81T & 87T option)
  • engine pinion: Not included


Geometry
  • Camber: Adjustable front + rear
  • Front Caster: 26° fixed + caster in caster block = 26°, 28.5°, 31° total caster range
  • Toe-in: Adjustable front + rear
  • Downstops: Adjustable front + back
  • Front kick-up: Adjustable 26°~31°
  • Rear anti-squat: Adjustable 0°~4°
  • Anti-roll pubs: 1.0 mm, 1.1 mm, 1.2 mm rear (option only)
  • Ackermann: Adjustable
  • Bump steer: Adjustable
  • Steering: Centrally-positioned dual steering system


Body, Tires, Wheels & Misc
  • Body: XRAY XB2 body
  • Tires: maybe not included
  • Wheels: XRAY Aerodisk 12mm Wheel hex hub


Adjustment Possibilities
  • Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
  • directions: Full-color manual with 3D pictures
  • Set-up book: maybe not included. HUDY 2-color off-road set-up guide (40 pages) could be downloaded within the „Download section“ and it shows 1/8 off road models in photographs included within it. But the methodology and set-up concept are the same for several modern 1/10 off road automobiles.
  • Packaging: Carton field with plastic bags with parts
  • Additionally included: HUDY Graphite Grease, Silicone natural oils, Authentication Certificate, Parts list & Exploded view, Decals


Items not included
  •   Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery pack packs, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal tool for several nuts and turnbuckles alongside tools
備註 :
由於庫存數量有限, 某些 XRAY 產品可能要特別從製造商訂購, 所需準備時間約為4-6週, 如我們庫存未能提供訂單上的某些產品, 我們將直接為客人從製造商訂購而買家須接受該所需的準備時間。
