XRAY 320006 XB2C 2019 Specs - 2WD 1/10 Electric Off-road Car - Carpet Edition  [XR-320006]

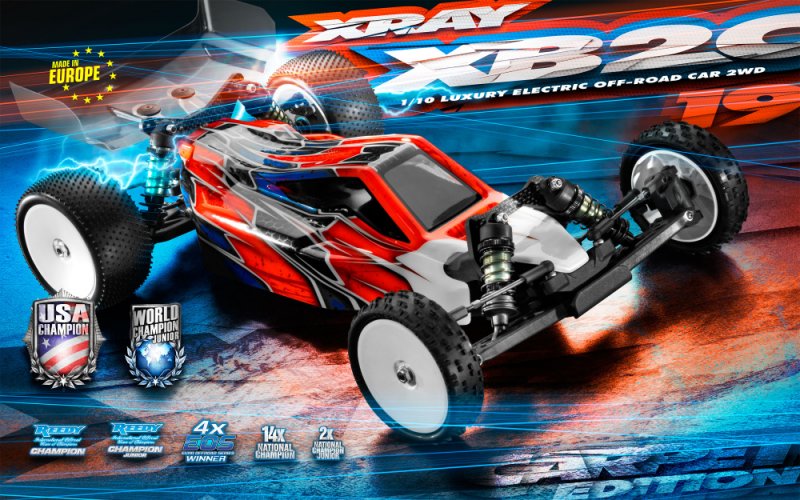

1/10 DELUXE OFF-ROAD CAR 2WD

• Brand new, from ground up 2WD 1/10 electric racing buggy
• Uni-Platform concept: Carpet Edition and Dirt Edition
• Full compatibility and interchangeable parts
• Designed for greatest performance anyway quantities of racing
• Engineered with awareness of smallest details
• Manufactured with famous artistic craftsmanship from premium European materials
• EFRA, ROAR, FEMCA spec compliant
• Super easy to build, create, maintain, and drive
• Developed, designed, and styled by European Champion Martin Bayer and Dipl. Eng. Juraj Hudy, manufactured solely by XRAY in European Countries in the world's many advanced RC manufacturing facility
• Setting the new benchmark for premium quality, dependability and performance
• Premium XRAY solution & support

• Uni-Platform concept two editions: Carpet Edition and Dirt Edition
• Single platform, two editions for various traction conditions
• Full compatibility and interchangeable components

 Carpet Edition:  designed for medium to very-high traction conditions

• Gear Differential
• Mid-Motor Gear Box
• Mid-Motor Plate
• Graphite Front & Rear Shock Towers
• Rear Roll Center Holder
• Motor Upper Brace
• Battery Strap
• Medium and tricky Composite parts

• Dirt Edition:  made for very-low, low, moderate, and medium-high traction conditions
  • Ball Differential
  • Mid Gear Box for 3 Gears
  • Mid & Rear engine Plate
  • Composite Front & Rear Shock Towers
  • Rear Roll Center Holder
  • Motor Upper Brace
  • Battery Strap
  • Gear cover
  • Medium Composite parts

• Optimal framework weight distribution & stability, certain to Carpet Edition or Dirt Edition
• Carpet Edition Gear Box and engine Plate specifically made to install the motor in center place with top shaft placed lower
• Dirt Edition Gear Box and Motor Plate specifically made to install the motor in either middle place or back position, with top shaft positioned greater. Gear field may be designed with either a 3- or 4-gear configuration, permitting modification of motor orientation from remaining to right side in either mid or rear roles.
• Unique XRAY Multi-Flex technology for effortless chassis flex adjustment
• Swiss 7075 T6 hardcoated aluminum framework: lightweight, strong, rigid
• Electronics layout enables moving the batteries frontwards/rearwards, as well as making use of standard or mid-size servos and either making use of seat pack or short pack batteries
• Composite side guards are a fundamental piece of the XB2 Multi-Flex system
• Custom-designed front side lower framework brace, for sale in medium and hard hardness for certain track conditions
• Front protection bumper
• Custom-designed upper deck, for sale in medium and difficult hardness for specific track conditions
• Swiss 7075 T6 aluminum engine plate, specific to Carpet Edition (mid-motor) or Dirt Edition (mid- or rear-motor)
• Battery strap with foam spacer, particular to Carpet Edition or Dirt Edition
• Lightweight, strong surprise towers with multiple shock mounting roles, certain to Carpet Edition (graphite) or Dirt Edition (composite)
• Pre-drilled framework holes for additional weights for maximum vehicle balancing; centerline holes are pre-drilled for effortless balancing with the HUDY Chassis Balancing Tool #107880

• Conventional gear-driven 2WD off road car
• Unique gear package, specific to Carpet Edition or Dirt Edition
  • Carpet Edition Gear Box and engine Plate with lowered top shaft, forward-shifted motor for improved steering and handling on higher-traction surfaces
  • Dirt Edition Gear Box with raised top shaft, engine positioning closer to differential for improved rear grip in lower-traction conditions
• Included rear differential is particular to Carpet Edition (gear differential with adjustable oil viscosity, 53T gear & interior satellite gears) or Dirt Edition (externally-adjustable ball differential with top-quality carbide thrustbearing and carbide balls)
• 25T graphite composite idler gear is particular to Dirt Edition & 36T gear to Carpet Edition
• 20T super-lightweight Swiss 7075 T6 hardcoated aluminum top shaft
• Robust slip-adjustable clutch with 81T main spur gear molded from exclusive key blend of composite material
• 3-pad slipper clutch with ultra-efficient SLS material to get more efficient & precise slide modification, and HUDY Spring Steel™ hardened outdrives for additional lifespan and reliability
• Constant velocity drives (CVD) are made of unique HUDY Spring Steel for paid off fat and increased durability
• Ultra-lightweight 12mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 and additionally black-coated have ultra-true hex clamping design which ensures solid mounting regarding the wheel
• Full pair of 24 high-speed, blue-sealed ball-bearings are utilized through the drivetrain to make sure maximum effectiveness, degreased and oiled with AeroShell® Fluid 12 for optimum smoothness and endurance

• Integrated Suspension Settings (I.S.S.) for quick & simple suspension geometry setting using eccentric bushings inserted into Swiss 7075 T6 aluminum suspension holders
• Specially-designed suspension system elements manufactured from carefully formulated customized composite mixtures to make sure proper flex and durability
• Race-perfected suspension geometry for superior performance and versatility in most racing conditions.
• Suspension components: arms, steering blocks, caster obstructs and uprights can be found in moderate and difficult hardness for certain track conditions
• Lower composite arm mount with built-in 26° kick-up angle; optional aluminum and metal arm mounts available
• Lightweight, rigid caster blocks can perform different general caster angles making use of included caster bushings
• Tiny yet tough steering blocks composed of composite steering obstructs + graphite Ackermann extensions
• Adjustable weight stability & wheelbase via included shims on outer suspension pins
• Compact rear uprights with 0° toe and 6 various upper roll center positions
• HUDY Spring Steel material for turnbuckles (featuring a tougher core) can be used for front & rear upright linkages, and steering system.
• Optionally available rear anti-roll bar set to stabilize the rear for the automobile; effortlessly adjusted via linkages; laser-engraved markings for simple identification, for sale in various sizes for fine-tuning

• Simple yet effective dual-arm steering system
• Fully bearing-equipped with 8 high-speed ball-bearings for extremely precise steering
• Easily-adjustable Ackermann by quickly changing the steering website link mounting jobs on steering plate
• Bump guide adjustment for lots more aggression
• Ackermann modification via included shims or making use of different graphite expansion dishes on steering obstructs

• constant, dependable, membrane-free shocks with bleed-screw shock cap design function up-stop & downstop adjustment via shims (under surprise collar, and under pistons, correspondingly)
• Swiss 7075 T6 aluminum surprise systems, lower nut & bleeder surprise caps
• Super-precise molded Delrin™ pistons can be found with different holes & diameters for exact surprise adjustment; for custom modification, some blank pistons (no holes) are also included
• Shock rods are machined from a particular steel product, precision hand-ground for maximum smooth operation and also hardened for increased lifespan
• Premium shock springs created especially to complement the XB2 shocks; manually measured, chosen and matched into pairs to ensure equal length and damping characteristics; laser etched for simple identification
• Full line of linear -or- progressive shock springs available
• Premium silicone oils laboratory tested and calibrated to make sure highest possible persistence and quality

• High-downforce, low-profile aerodynamic Lexan™ body built to completely fit the XB2, flat cockpit & human anatomy sides to direct airflow for improved side security, and rooftop movement channels
• Tough composite part guards function double-sided Velcro™ tape to seal your body completely toward chassis and seal against dirt.
• Optional available ultra-lightweight human anatomy for very-high-traction songs conditions
• Stylish, effective Lexan rear wing built to work completely with all the XRAY XB2 body, supported on wing mounts by extra flat shims to higher help and extend the life span regarding the wing. Optionally available thicker 1.5mm (#323511) back wing for higher traction & stability
• Lexan front wing produces front downforce, mounted entirely on leading surprise tower
• Specially created 12mm hex hub wheels for high-competition race; featuring reinforcement ribs to get rid of deformation and molded from really versatile material to retain shape despite effects

• Premium 3D full-color Instruction Manual & supplementary sheets
• To know the set-up possibilities we suggest the famous HUDY Set-up Book which is full of over 40 pages of high-quality pictures and easy-to-read RC car set-up explanations
• Exclusive Virtual on the web Setup Sheet database with a huge number of set-up sheets for competition songs across the world
• Premium, unmatched XRAY online support

• Fully-adjustable front and back suspension geometry: caster, camber, back toe, kick-up, anti-squat, ride height, downstops, track-width, roll center, wheelbase, Multi-Flex
• Adjustable back differential action
• Adjustable slipper clutch
• Adjustable HUDY Sprint Steel™ turnbuckles (steering, front & rear upper links)
• Multiple upper & lower surprise mounting areas at front side & rear
• Adjustable Ackermann and bumpsteer
• Optional adjustable back anti-roll bar
• Chassis pre-drilled holes for fat stability modification
