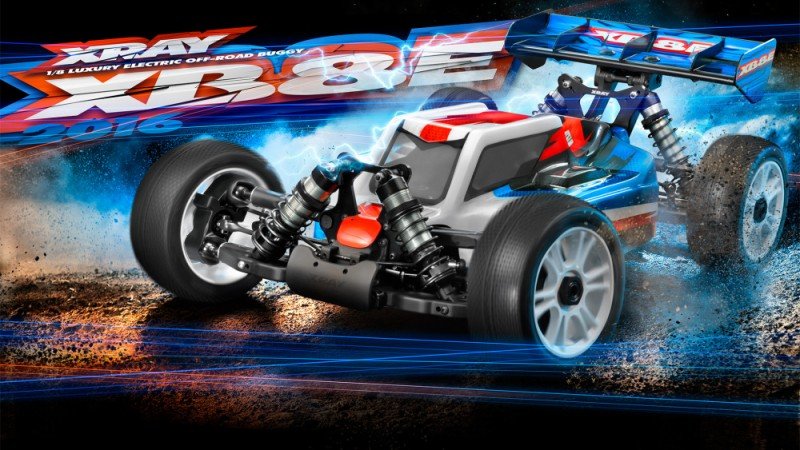

XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car   [XR-350153]

XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car
價格:
HKD$5,132.57
牌子:
XRAY
型號:
XR-350153
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - Off-Road - Buggy - Electric Powered
類別中嘗試尋找類似的產品
填寫評論
alt="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car"
Dimensions
  • Length: 500mm
  • Chassis length: 399.5mm
  • Wheelbase: 322~328mm
  • Width: 310mm
  • Weight: 2014g
  • Approximate running weight: 3450g


Chassis
  • Chassis: 3mm CNC-machined Swiss 7075 T6 hardcoated aluminum
  • Receiver tray: CNC-machined 2.2mm graphite
  • Radio instance: Composite
  • Front top deck: CNC-machined 2.5mm graphite
  • Central diff top deck: CNC-machined 2.2mm graphite
  • Braces: Composite braces (front side / rear)


Suspension
  • Suspension: Pivot ball completely adjustable suspension
  • Rear suspension system: Lower H-arm with adjustable top camber link
  • Front suspension: Lower H-arm with adjustable top camber link A-arm
  • Rear upright: Composite with double arm mounting and 2 lower roll center jobs and top aluminum plate with 3 upper roll center jobs
  • Shocks: Big-bore shocks with different shock pistons featuring Delrin™ pistons
  • Shock towers: Front & rear 4.0mm alu


Drivetrain
  • Type: Full-time shaft-drive 4WD w/ center differential
  • Primary: Steel spur gear / pinion
  • Drive shafts: HUDY Spring metal™ CVD drive shafts
  • Central shafts: HUDY Spring metal™ CVD drive shafts
  • Differentials: Sealed, 6 gear, silicone-filled
  • Bearings: Rubber-sealed


Gearing
  • Pinion: 14T front side / rear
  • Crown gear: 46T front / rear
  • Pinion gear: maybe not included (optional 12T~17T)
  • Spur gear: 46T
  • Primary ratio: 3.33
  • Final gear ratio: 11.79


Body, tires, wheels & misc.
  • Body: XRAY XB8'16 body
  • Tires: maybe not included
  • Wheels: Not included, standard 17mm hub


Modification opportunities:
  • Standard adjustment: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, lower & top roll facilities, kingpin, Ackermann, bump steer, Multi-Flex™, fat stability


Things not included:
  •   Electrical engine, Electronics (broadcast, Receiver, Steering Servo, Battery Pack, Speed Controller), Pinion gear, Wheels, Tires, Tools, Wheel tool, Paint, Battery Charger, Bearing Oil, Threadlock, CA Glue, Universal device for all peanuts and turnbuckles, Set-up Book
備註 :
由於庫存數量有限, 某些 XRAY 產品可能要特別從製造商訂購, 所需準備時間約為4-6週, 如我們庫存未能提供訂單上的某些產品, 我們將直接為客人從製造商訂購而買家須接受該所需的準備時間。
