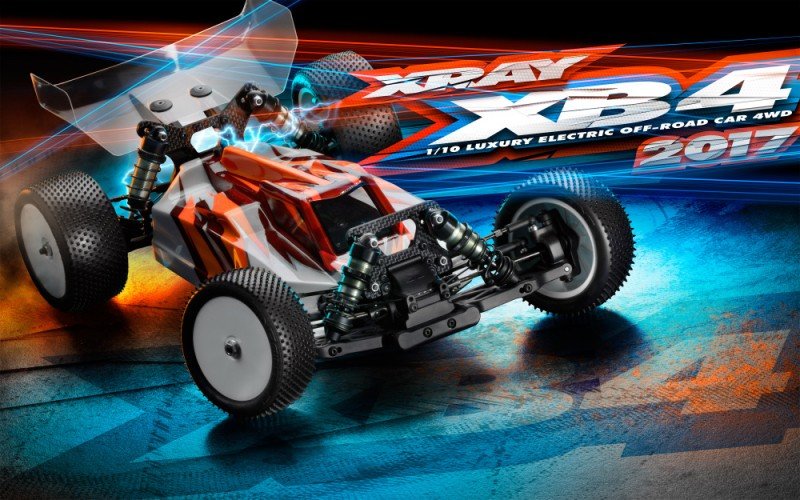

XRAY 360004 XB4 2017 Specs - 4WD 1/10 Electric Off-Road Car
[
XR-360004
]
價格:
HKD$4,129.05
牌子:
XRAY
型號:
XR-360004
售罄
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
送出
你或可於
R/C Models - Off-Road - Buggy - Electric Powered
類別中嘗試尋找類似的產品
1
2
3
4
5
5
填寫評論
產品說明
Dimensions
Class: 1/10 electric 4WD off road car
Width: Adjustable 245-250mm
Length: 350 mm
Wheelbase: Adjustable 279-281 mm
Weight: 850 g
Ready-to-run fat: 1650 g
Chassis
Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0mm
Front upper deck: Machined 2.0 mm laminated carbon graphite
Suspension
Suspension: Adjustable suspension via incorporated Suspension System I.S.S.
Rear suspension: Lower supply with adjustable top camber link
Front suspension: Lower arm with adjustable upper camber link sufficient reason for 9° caster blocks
Rear upright: Composite 0° toe-in with dual arm mounting and 3 roll center jobs
Shocks: Big bore membrane free surprise absorbers with Delrin pistons
Shock towers: Machined 3.5 & 3.0 mm laminated carbon graphite (front & back) with numerous shock mounting and camber link roll center jobs
Drivetrain
Type: Full-time shaft-drive 4WD
Primary: Pinion / spur
Drive shafts: HUDY Spring metal CVD drive shafts
Central shafts: HUDY Spring Steel Direct Connection Shafts
Differentials: Sealed gear differential, 6 gear, silicone-filled
Slipper clutch: Adjustable 3-Pad
Bearings: Rubber-sealed high-speed bearings
Gearing
Primary ratio: 1:2.5
Differential pinion: 14T front / rear
Differential top gear: 35T front / rear14
Spur gear: 81T
engine pinion: maybe not included
Geometry
Camber: Adjustable front side + rear
Front Caster: 9° static +7~11° caster in chassis = 16°~20° total caster range Optional 6° static +7~11° caster in framework = 13°~17° total caster range Optional12°static +7~11° caster in chassis = 19°~23° total caster range
Toe-in: Adjustable front + back
Downstops: Adjustable front + rear
Front kick-up: Adjustable 7° ~ 11°
back anti-squat: Adjustable 1° ~ 5°
Anti-roll pubs: 1.3mm front side / 1.2mm rear
Ackermann: Adjustable
Bump steer: Adjustable
Steering: Centrally-positioned twin steering system
Body, Tires, Wheels & Misc
Body: XRAY XB4 human anatomy wide V2
Tires: perhaps not included
Wheels: XRAY Aerodisk 12mm Wheel hex hub
Adjustment Possibilities
Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
guidelines: Full-color manual with 3D photos (40 pages)
Set-up book: maybe not included. HUDY 2-color off road set-up book (40 pages) could be downloaded into the Download section and it shows 1/8 off road models in photographs contained within it. However, the methodology and set-up concept are exactly the same for all modern 1/10 off road vehicles.
Packaging: Carton field with plastic bags with parts
Additionally included HUDY Graphite Grease, Silicone natural oils, Authentication Certificate, Parts list & Exploded view, Decals
Things perhaps not Included
Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery pack packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal tool for several nuts and turnbuckles as well as other tools
備註 :
由於庫存數量有限, 某些
XRAY
產品可能要特別從製造商訂購, 所需準備時間約為
4-6週
, 如我們庫存未能提供訂單上的某些產品, 我們將直接為客人從製造商訂購而買家須接受該所需的準備時間。
