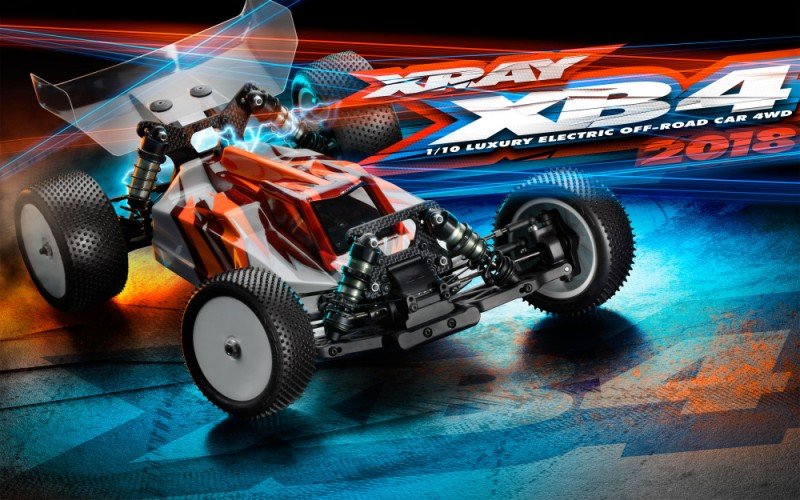

XRAY 360005 XB4 2018 Specs   [XR-360005]

XRAY 360005 XB4 2018 Specs
價格:
HKD$4,453.89
牌子:
XRAY
型號:
XR-360005
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - Off-Road - Buggy - Electric Powered
類別中嘗試尋找類似的產品
填寫評論
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"
Dimensions
  • Class: 1/10 electric 4WD off-road car
  • Width: Adjustable 245-250mm
  • Length: 350 mm
  • Wheelbase: Adjustable 279-281 mm
  • Weight: 850 g
  • Ready-to-run fat: 1650 g


Chassis
  • Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0 mm
  • Front upper deck: Machined 2.0 mm laminated carbon graphite


Suspension
  • Suspension: Adjustable suspension via Integrated Suspension System I.S.S.
  • Rear suspension system: Lower supply with adjustable upper camber link
  • Front suspension system: Lower supply with adjustable top camber link with 9° caster blocks
  • Rear upright: Composite 0° toe-in with twin supply mounting and 3 roll center positions
  • Shocks: Big bore membrane layer free surprise absorbers with Delrin pistons
  • Shock towers: Machined 3.5 & 3.0 mm laminated carbon graphite (front & rear) with numerous surprise mounting and camber link roll center positions


Drivetrain
  • Type: Full-time shaft-drive 4WD
  • Primary: Pinion / spur
  • Drive shafts: HUDY Spring metal™ CVD drive shafts
  • Central shafts: HUDY Spring Steel™ Direct Connection Shafts™
  • Differentials: Sealed gear differential, 6 gear, silicone-filled
  • Slipper clutch: Adjustable 3-Pad
  • Bearings: Rubber-sealed high-speed bearings


Gearing
  • Primary ratio: 1:2.5
  • Differential pinion: 14T front side / rear
  • Differential top gear: 35T front / rear14
  • Spur gear: 81T
  • Motor pinion: perhaps not included


Geometry
  • Camber: Adjustable front + back
  • Front Caster: 9° fixed +7~11° caster in framework = 16°~20° total caster range Optional 6° static +7~11° caster in framework = 13°~17° total caster range Optional12°static +7~11° caster in chassis = 19°~23° total caster range
  • Toe-in: Adjustable front side + rear
  • Downstops: Adjustable front + rear
  • Front kick-up: Adjustable 7° ~ 11°
  • back anti-squat: Adjustable 1° ~ 5°
  • Anti-roll bars: 1.3mm front side / 1.2mm rear
  • Ackermann: Adjustable
  • Bump steer: Adjustable
  • Steering: Centrally-positioned twin steering system


Body, Tires, Wheels & Misc
  • Body: XRAY XB4 body wide V2
  • Tires: perhaps not included
  • Wheels: XRAY Aerodisk 12mm Wheel hex hub


Adjustment Possibilities
  • Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
  • guidelines: Full-color manual with 3D graphics (40 pages)
  • Set-up guide: perhaps not included. HUDY 2-color off road set-up guide (40 pages) could be downloaded within the “Download area“ plus it shows 1/8 off-road models in photographs included within it. But the methodology and set-up concept are the same for several contemporary 1/10 off road automobiles.
  • Packaging: Carton box with vinyl bags with parts
  • Additionally included HUDY Graphite Grease, Silicone Oils, Authentication Certificate, Parts list & Exploded view, Decals


Items perhaps not Included
  •   Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal tool for all peanuts and turnbuckles along with other tools
備註 :
由於庫存數量有限, 某些 XRAY 產品可能要特別從製造商訂購, 所需準備時間約為4-6週, 如我們庫存未能提供訂單上的某些產品, 我們將直接為客人從製造商訂購而買家須接受該所需的準備時間。
