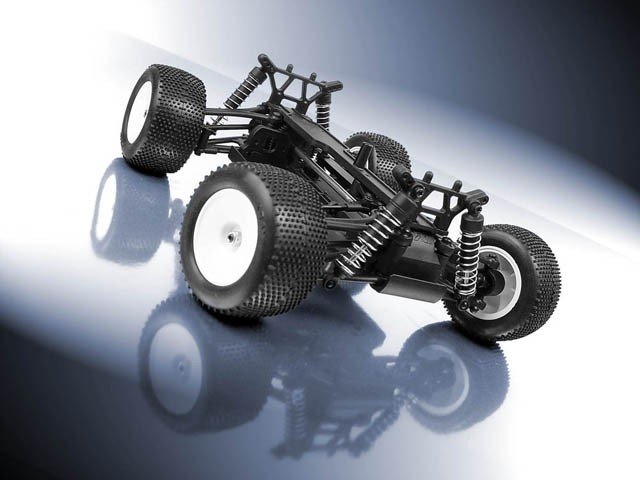

XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck  [XR-380500]

XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck
價格:
HKD$1,059.16
牌子:
XRAY
型號:
XR-380500
請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.
你或可於 R/C Models - Off-Road - Trucks
類別中嘗試尋找類似的產品
填寫評論
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
alt="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck" title="XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck"
Dimensions
  • Class: 1/18 electric micro truck
  • Front Width: 178mm
  • Rear Width: 180mm
  • Length: 211 mm
  • Wheelbase: 150 mm
  • Weight: 295 g
  • Ready to perform fat: 535 g


Chassis:
  • Chassis: composite CAD-designed chassis
  • Upper deck: composite upper deck
  • Body: 150 mm 1/18 micro truck human body (included)


Drivetrain:
  • Type: shaft-drive 4WD
  • Drivetrain: aluminum main driveshaft
  • Primary drive: pinion/spur
  • Drive ratio: 1:2.5
  • Drive shafts: composite front side + rear
  • Differentials: composite ball differentials - adjustable front side + rear
  • Bearings: 22 high-speed ball-bearings


Suspension system:
  • Front: completely separate
  • Rear: fully independent
  • Dampening: oil-filled coil-over shocks


Geometry:
  • Camber: front/rear: -2° (preset)
  • Caster: 12° (preset)
  • Front Toe: toe-out 0.5° (preset)
  • backside Toe: toe-in 3.5° (preset)
  • Anti-roll pubs: 1.0mm front + backside (included)
  • Wheelbase: 150 mm


Others:
  • Wheels: XRAY micro vehicle wheels
  • Tires: XRAY micro truck low pin rubber tires
  • guidelines: full-color manual with 3D visuals
  • Packing: carton field with 8 vinyl bags with parts
  • Additionals included: certificate, components list, decals, Hudy 3.0mm screwdriver, XRAY catalog
  • Not included: radio system (transmitter and receiver), steering servo, ESC, engine, battery power, battery pack charger
備註 :
由於庫存數量有限, 某些 XRAY 產品可能要特別從製造商訂購, 所需準備時間約為4-6週, 如我們庫存未能提供訂單上的某些產品, 我們將直接為客人從製造商訂購而買家須接受該所需的準備時間。
