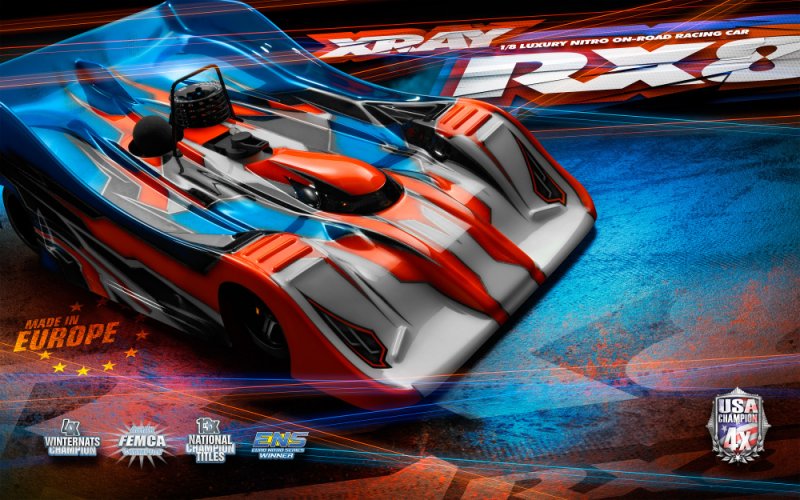

Xray RX8 - 2018 Specs - 1/8 Luxury Nitro ON-ROAD CAR [XR-340006]

價格:

HKD$6,647.58

牌子:

XRAY

型號:

XR-340006

售罄

請輸入姓名和電子郵件地址。當貨品重新上架我們將笫一時間通知閣下.

你或可於 R/C Models - On-Road - Touring Cars - Nitro Powered
類別中嘗試尋找類似的產品

填寫評論

alt="Xray RX8 - 2018 Specs - 1/8 Luxury Nitro ON-ROAD CAR" title="Xray RX8 - 2018 Specs - 1/8 Luxury Nitro ON-ROAD CAR"

產品說明

All-new 2018:

All-new framework features bigger front window opening for enhanced ahead traction
All-new chassis with exclusive, innovative front flex adjustment utilizing a removable aluminum brace. Utilising the aluminum brace increases steering reaction and cornering rate; minus the aluminum brace, the vehicle is a lot easier to drive.
All-new adjustable weight position on both sides regarding the chassis for fast & simple fat balance adjustment
All-new back layshaft bulkheads allow use of bracket bushings to connect the layshaft bulkheads with rear bulkheads to strengthen the entire back suspension, offering enhanced handling particularly in high-traction conditions. Without bracket bushings, the automobile has more traction; recommended for low-traction conditions. This new bulkhead design additionally enables installation of a high graphite brace.
All-new back aluminum bulkheads
All-new graphite brace for back layshaft is an element of the back suspension system Multi-Flexâ¢ Technology
All-new graphite holders for rear top supply have actually brand new roles â lower & more inside â for increased traction and improved durability
All-new rear aluminum suspension system holders have actually new position the back arms â more inside â for increased traction
All-new steel extensions for suspension system hands have actually a fresh position to function better with brand new rear aluminum suspension holders

General

Developed, created, and styled by Martin Hudy, manufactured exclusively by XRAY in Europe worldwide's most sophisticated RC production facility
Pure racing design, premium luxury quality, highest performance
Premium, exclusive, and high-tech materials utilized throughout
Unique, super-strong composite materials with XRAY's self-developed key element mixtures for suspension and drivetrain components
Super-low CG 1/8 on-road vehicle platform
Easy-access to drivetrain components for super-quick rebuilds and set-up changes

Chassis

Chassis spaces machined at front & backside of chassis for additional weights

Chassis design with larger opening screen under front suspension for better forward traction
Chassis design permits to mount front framework brace into the chassis to bolster the leading flex for better steering response
Aluminum main framework & backbone
Rear layshaft bulkheads permits to install the shim which connects the layshaft bulkheads with back bulkheads which reinforces the complete back suspension system for improved steering and rotation in high traction conditions
High-precision CNC-machined aluminum bulkheads, suspension holders, and chassis
Light & strong support framework with maximum flex characteristics for increased traction
CNC-machined 5mm Swiss 7075 T6 aluminum chassis
Super-narrow framework increases chassis flex, creates more traction and steering
Smooth chassis underside with countersunk fasteners, chamfered sides to stop contact during cornering
Special chassis openings machined at front & back of framework for extra weights
Strategic framework cut outs for optimized flex traits, centric motor mount holes for improved flex
Centerline chassis holes are pre-drilled for simple balancing with all the HUDY Chassis Balancing Tool #107880.
CNC-machined Swiss 7075 T6 aluminum bulkheads offer enhanced tightness & flex traits for better steering faculties, give quick access to any or all parts. Built-in front & back gear tension modification. Included muffler mount in left front side bulkhead eliminates negative flex impact.
Aluminum front & back top clamps, designed to fit aluminum bulkheads. Front clamps contain the front shock tower, front upper supply mount; back clamps hold back surprise tower, graphite upper arm holders.
Aluminum front upper arm holders built to make use of the aluminum bulkheads, and offer optimal flex adjustment. Easy place adjustment for increased caster angle and improved cornering speed.
Aluminum middle shaft holder designed to use aluminum bulkheads, acts as belt tensioner for the front side & side belts.
CNC-machined 2.5mm graphite radio plate. Fast & simple reduction for servicing and cleaning.
Radio dish flex is modified separately from framework flex, utilizing either fixed or flex bushing.
Radio dish alum mounts are designed to fit into the aluminum frame. Lightweight mounts give enhanced flex faculties and durability.
Low-profile 125cc gas tank provides for improved fuel motion, ensuring more stable & consistent engine procedure at reduced fuel amounts. Hypertonic tank lid and interior stone-type filter is put in the exact middle of the car and sits as low as possible
fuel tank mounting atop the air plate on alum articles with rubber grommets for easy insertion & treatment from vehicle, allows simple cleansing and maintenance
Original XRAY gas tank utilizes the well-proven leak-free, super-durable cap from the NT1
Low-CG battery pack holder situated under the gas tank. Optional graphite with integrated Multi-Flex Technologyâ¢ functionality. Optional brass battery pack owner adds fat to your bottom associated with the car.
Unique compact lightweight radio case with clean design and internal design for receiver and optional on-off switch

Suspension

Advanced suspension geometry accuracy engineered and finely tuned for high-competition racing
Lightweight, durable, and reinforced suspension parts molded from XRAY's self-developed composite mixture for suspension system components. Each suspension system component is molded from a high-tech composite which specifically developed for the particular part.

CNC-machined Swiss 7075 T6 front & rear suspension holders, fully separate through the bulkheads, mounted straight to the framework to improve traction and also make the automobile easier to drive.
Rear upper supply holders, machined from 3.5mm graphite material for optimized flex traits.
Highly-polished, high-tensile steel suspension pivot pins give smooth suspension action, feature machined groove for better affixing by setscrew
I.S.S. (Integrated Suspension Settingsâ¢) for completely incorporated modification opportunities.
Full suspension system modification via square eccentric bushings in the front upper and back upper/lower bulkheads.
Tiny, tough steering blocks made from special composite mixture have 0Â° kingpin (+1Â° and -1Â° kingpin steering blocks elective). Accommodates graphite aerodynamic disks.
Aluminum steering block extensions with three Ackermann jobs are installed toward steering obstructs with two screws
Small, robust back uprights function two easily-adjustable upper roll center jobs for traction adjustment. Uprights feature two body mounting modification jobs to utilize different human body types. Accommodates graphite aerodynamic disks.
Concentric & eccentric bushings in front steering obstructs & backside uprights allow simple adjustment of roll center, caster, wheelbase, and axle height
Easily-adjustable wheelbase & fat stability and caster modification via positioning clips
Choice of front side anti-roll club systems: wire or blade-type (both included)
Front and rear cable anti-roll pubs supported by ball-bearings
Both front wire and blade anti-roll pubs within the kit
Optional front side & back anti-roll club wires readily available for fine tuning
Premium Hudy Spring Steelâ¢ adjustable turnbuckles with rigid core
Precision-ground steel pivot balls included for robustness and enhanced lifespan; optional lightweight aluminum and titanium pivot balls available
Strong M10 composite peanuts for minimal weight and smooth pivot ball movement
Front steering block & rear uprights feature concentric and eccentric bushings which enable roll center modification as well as good caster modification in front. Back upright eccentric bushings enable independent wheelbase & axle height adjustment.

Motor & Clutch

Quick-set aluminum motor mount system with fixed engine position for super-easy motor installation and gear mesh adjustment
Easily-adjustable 3-shoe XCA (XRAY Centrifugal-axial) clutch with 4-bearing clutchbell for superior durability, smooth & quick acceleration, increased clutch footwear lifespan
Clutchbell, clutch nut, flywheel nut, thrustbearing collar manufactured from unique HUDY Spring Steelâ¢ for maximum lifespan and durability
Hardcoated flywheel, clutch dis, springtime cup manufactured from premium Swiss 7075 T6 aluminum
Clutchbell / pinion gear construction enables super-precise assembly
Swiss 7075 T6 machined pinion gears, specially designed for 1/8 on-road, for significantly enhanced strength and durability. Pinion gear teeth are independently machined on a high-precision gear manufacturing machine; unique hardcoating means maximum life
Carbide axial thrust-bearing and high-tensile spring
Small diameter aluminum flywheel improves the engine base power and acceleration

Brakes

Strong, highly-efficient braking system system
Laser-cut, accuracy flat-ground ventilated metal brake disk with extra-deep machined grooves for lightweight and excellent temperature dissipation, optimum stopping efficiency and super-smooth braking action; strategically-placed ventilation holes make sure minimal brake pad use and super-true, wobble-free rotation
Brake disk and braking system backing pads are heat-treated for maximum performance and lifespan
Special return softer springs guarantee proper space between brake pads
CNC-machined metal braking system cam is ball-bearing supported for super smoothness and accurate braking system control

Drivetrain

Smooth and efficient 1/8 on-road drivetrain
Ultra-smooth, highly-efficient belt/pulley drivetrain with super-low rotating mass
Front middle shaft holder provides effortless front belt & pulley access and easier maintenance
Exclusive usage of HUDY Spring Steelâ¢ in drivetrain components provides highest performance and unmatched lifespan
High-performance HUDY Spring Steelâ¢ front CVD drive shafts; rear dogbone-style HUDY Spring Steelâ¢ drive shafts
Super-lightweight wheel axles & axle outdrives are CNC-machined from HUDY Spring Steelâ¢
PURÂ®-reinforced high-efficiency, low-friction, fine-pitch drive belts
Pulleys molded from super-low friction composite product for extra-long lifespan, pulley covers function self-cleaning holes
Complete set of high-speed, blue-sealed ball-bearings, degreased, gently oiled with Aero Shell Fluid 12â¢ for maximum drivetrain efficiency
Graphite side-belt tensioner built to work with alum framework. Easy gear adjustment, simple reduction.

2-Speed Transmission

Superior, robust 2-speed transmission with small & light gears, excellent bottom-end power & acceleration
Small & lightweight gear provider, aluminum drive flange with 1-way bearing
Small & lightweight gears from well-proven NT1 for fast acceleration and low rotating mass
Gears from graphite product contained in the kit for improved durability for the transmission
Precision-manufactured, super-smooth lightweight hollow middle layshaft made from tough HUDY Shaft metal, specially heat treated for additional power and long life
High-quality 1-way bearing hand-ground for optimum running precision and strength
2-speed spur gear adapter CNC-machined from Swiss 7075 T6 for precision fitment of 1-way bearing, permitting super-precise and wobble-free spur gear installation
World's many exact spur gears molded from special composite mixture guarantees wobble-free operating and eliminates run-out
2-speed gearbox shoes molded from special composite mixture

Axles

Front super-lightweight one-way axle made from Swiss 7075 T6 alum for super-low rotating mass and low CG
Rear axle made from HUDY Spring Steelâ¢ with composite lightweight axle pulley
One-way outdrives made of HUDY Spring Steelâ¢ and especially ground for optimum precision

Steering

Centralized servo saver is ball-raced for super-precise, smooth operation
Adjustable springtime preload tension
Easily-changed Ackermann roles

Shocks

Shock pistons with 2- and 3-hole designs and 1.0/1.1/1.2mm holes, produced from unique Delrinâ¢ material to make certain extreme roundness and extra-smooth damping
CNC-machined shock bodies produced from Swiss 7075 T6 aluminum, externally fine-threaded for precise trip height adjustment
Low-profile internal membranes for super-smooth, exact damping
Specially-hardened surprise shafts for maximum strength
XRAY self-developed and manufactured racing springs are hand-selected and tested for maximum precision, equal length, and equal damping characteristics
Compact front & rear CNC-machined graphite surprise towers

XRAY Premium Silicone natural oils are included. Manufactured in European countries by a specialized premium silicone oil manufacturer, each batch of premium oil is laboratory tested and calibrated to guarantee the highest possible persistence and quality batch-to-batch. Based on the industry-standard cSt score.

Body & Wheels

Optional CNC-machined high-strength graphite aerodynamic disks improve both low & high-speed steering, improve backside traction, and enhance security in high-speed corners.
front side human body articles, CNC-machined from Swiss 7075 T6 alum, also lightened for minimal weight.
Special composited rear body mount features 3 roles for back upright downforce adjustment.
Tough composite rear body mount holder allows mounting of all of the popular sporting figures and satisfies all EFRA / IFMAR rules.

Assembly & Support

Premium 3D full-color Instruction Manual is included
Comprehensive Set-up Book is available on the web as a free download
Exclusive Virtual on the web Set-up Sheet database with a large number of set-up sheets for race songs round the world
Premium, unmatched XRAY online support

Adjustment Possibilities

Fully-adjustable front side and rear suspension geometry: caster, camber, toe, trip height, droop, wheelbase, track-width, roll centers, axle height, wheel offset
XRAY Multi-Flex Technologyâ¢ allows for fast & effortless chassis and radio plate tightness adjustment
Adjustable front & rear roll centers
Adjustable belt stress via bulkhead inserts, side belt tensioner, front center shaft holder position
Adjustable HUDY Spring Steelâ¢ turnbuckles (steering, servo, back upper links)
Adjustable Ackermann positions
Front & back upper and lower shock mounting locations
Adjustable aluminum racing shocks
Adjustable front anti-roll pubs, blade or wire type
Adjustable wire-type backside anti-roll bar
Adjustable fat stability

備註 :

由於庫存數量有限, 某些 XRAY 產品可能要特別從製造商訂購, 所需準備時間約為4-6週, 如我們庫存未能提供訂單上的某些產品, 我們將直接為客人從製造商訂購而買家須接受該所需的準備時間。
